SELECT A DIAGRAM
01 - Blower Motor (convection)
02 - Blower Motor (cooling)
03 - Body
04 - Control Panel
05 - Door
06 - Internal Controls
07 - Liner
SELECT A DIAGRAM
New Model Search:

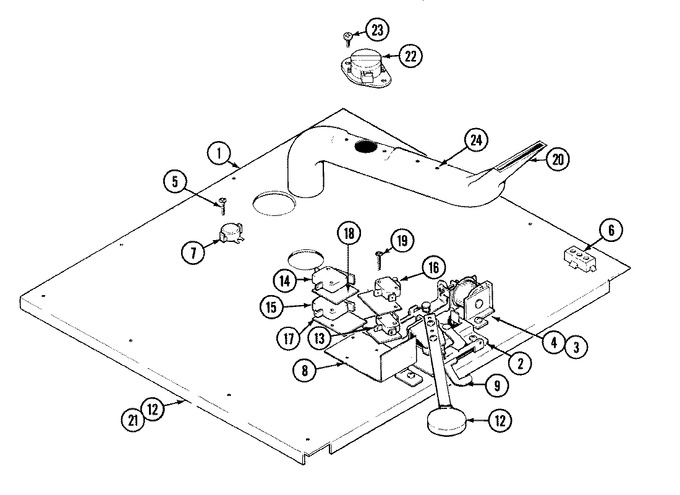

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704155 | Panel-top | 11 |
|
- | ||||
| 2 | 793357 | Latch Assy. | 11 |
|
- | ||||
| 3 | Y701686 | Pin, Cotter | 11 |
|
- | ||||
| 4 | 703767 | Wire, Gray | 11 |
|
- | ||||
| 4 | Y702526 | Solenoid | 11 |
|
- | ||||
| 5 | WP12990527 | Screw (Replaces: Y708955) | 11 |
|
Immediately | $ 7.15 | |||
| 6 | 703517 | Connector, Harness | 11 |
|
- | ||||
| 7 | 701687 | Thermostat | 11 |
|
- | ||||
| 8 | 701706 | Shield, Switch | 11 |
|
- | ||||
| 9 | Y704240 | Lever, Latch (blk) | 11 |
|
- | ||||
| 10 | 707407 | Screw | 11 |
|
$ 6.42 | ||||
| 11 | 701671 | Spring, Knob | 11 |
|
- | ||||
| 12 | Y703932 | Knob (blk) | 11 |
|
- | ||||
| 13 | Y702360 | Switch, Solenoid | 11 |
|
- | ||||
| 14 | 702806 | Switch, Door | 11 |
|
- | ||||
| 15 | 702805 | Switch, Door | 11 |
|
- | ||||
| 16 | Y703732 | Switch, Latch | 11 |
|
- | ||||
| 17 | Y702350 | Insulator | 11 |
|
- | ||||
| 18 | 703264 | Insulator | 11 |
|
- | ||||
| 19 | 702807 | Screw | 11 |
|
- | ||||
| 20 | 701684 | Tube, Vent | 11 |
|
- | ||||
| 21 | WP71001171 | Screw, Ground (Replaces: Y703817) | 11 |
|
$ 6.26 | ||||
| 22 | Y702107 | Limit, Oven | 11 |
|
- | ||||
| 23 | Y702711 | Terminal | 11 |
|
- | ||||
| 23 | 71002058 | Screw (Replaces: Y702124) | 11 |
|
$ 5.82 | ||||
| 24 | WP59002061 | Screw (Replaces: Y707172) | 11 |
|
$ 6.98 |
