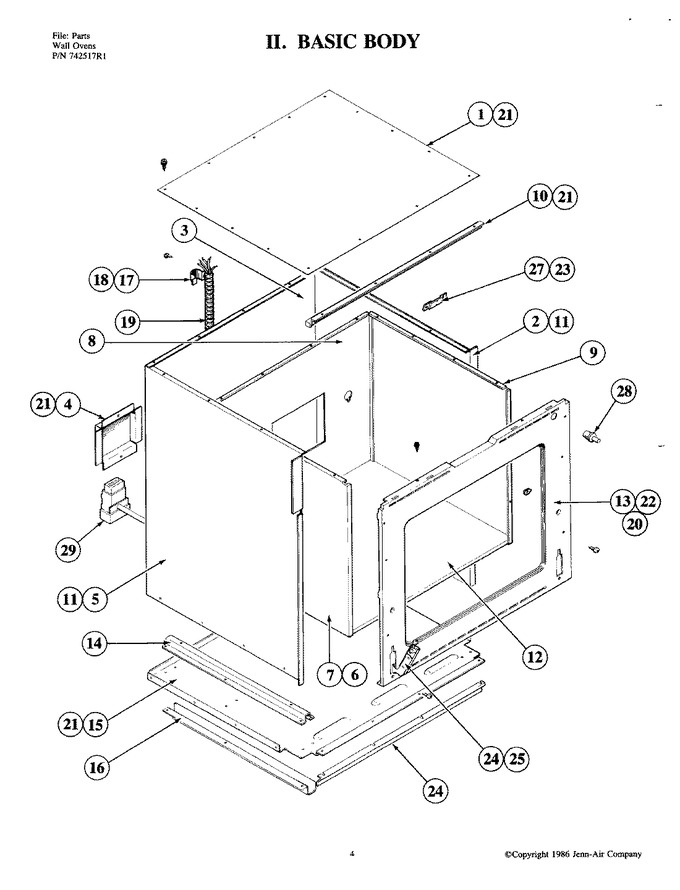

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701681		Top (outer)	1	Appelez-nous	-
2	701672		Panel, Outer (rt)	1	Appelez-nous	-
3	701691		Panel, Rear (outer)	1	Appelez-nous	-
4	702792		Cover, Thermostat	1	Appelez-nous	-
5	701695		Panel, Outer (lt)	1	Appelez-nous	-
6	712072		Bracket, Hat (side)	1	Appelez-nous	-
7	DE81-09195A		Panel, Side (lt)   (Replaces: 701697)	1			$ 779.04
8	701700		Panel, Back	1	Appelez-nous	-
9	701676		Panel, Side (rt)	1	Appelez-nous	-
10	701705		Support, Top	1	Appelez-nous	-
11	Y700556		Clip, J	1	Appelez-nous	-
12	DE81-07471A		Panel, Bottom   (Replaces: 701669)	1			$ 320.80
13	WPW10068250		Screw   (Replaces: Y700582)	5			$ 3.66
13	703609		Closure, Front	5	Appelez-nous	-
13	701663		Closure, Front	1	Appelez-nous	-
14	DE81-06547A		Support, Bottom   (Replaces: 701667)	1			$ 163.64
14	701701		Angle, Oven Support	1	Appelez-nous	-
15	701668		Panel, Bottom (outer)	1	Appelez-nous	-
16	700596		Rail, Bottom	1	Appelez-nous	-
17	DE81-08030A		Clamp, Conduit   (Replaces: 701692)	1			$ 131.01
18	WP7101P126-60		Screw   (Replaces: Y708310)	1		Immediately	$ 6.85
19	DE81-08029A		Harness, Main   (Replaces: 701693)	1			$ 132.75
20	701683		Bracket, Hat (rear)	1	Appelez-nous	-
21	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.15
22	W11233072		Screw   (Replaces: Y708733)	1		Immediately	$ 12.62
23	WP90767		Screw   (Replaces: 715773)	1		Immediately	$ 7.04
24	Y703419		Hinge	5	Appelez-nous	-
24	DA81-08981A		Hinge, Door   (Replaces: 702112)	1			$ 385.18
25	Y708690		Screw	1	Appelez-nous	-
25	WP3196183		Screw   (Replaces: Y701664)	5		Immediately	$ 6.98
26	701848		Trim, Oven (lower)	1	Appelez-nous	-
27	701680		Bracket, Vent Tube	1	Appelez-nous	-
28	701666		Switch, Door	1	Appelez-nous	-
29	702812		Thermostat----na	1	Appelez-nous	-
