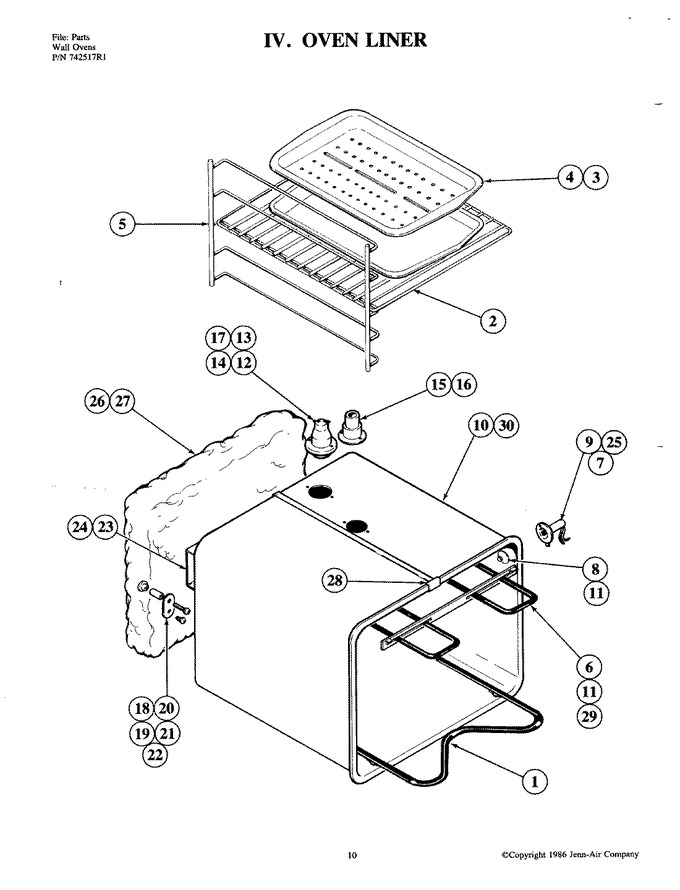

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPY04100020		Element, Bake 240v   (Replaces: Y701724)	1		Immediately	$ 136.96
2	Y701725		Rack, Oven	1	Appelez-nous	-
3	4396923		Pan, Broil   (Replaces: 708810)	1		Immediately	$ 52.04
4	4396923		Rack, Broil Pan   (Replaces: Y708811)	1		Immediately	$ 52.04
5	Y701728		Support, Rack	1	Appelez-nous	-
6	WPY04100016		Element, Broil   (Replaces: Y701729)	1			$ 137.21
6	WP179051		Screw   (Replaces: 708764)	1		Immediately	$ 7.16
7	Y701731		Mount, Meat Probe	1	Appelez-nous	-
7	Y703356		Nut, Hex 3/8``	1	Appelez-nous	-
7	703007		Standoff	1	Appelez-nous	-
8	DE81-03805A		Cover (upper)   (Replaces: 701732)	1			$ 113.65
9	Y703022		Jack, Probe	1	Appelez-nous	-
9	WP71001870		Probe, Meat   (Replaces: Y700884)	1			$ 201.71
10	712069		Weld, Oven	1	Appelez-nous	-
11	WP1163283		Screw   (Replaces: Y703741)	1			$ 6.47
12	715281		Receptacle, Light	1	Appelez-nous	-
13	701736		Washer	1	Appelez-nous	-
14	715485		Screw	1	Appelez-nous	-
15	701738		Tube, Vent	1	Appelez-nous	-
16	WPY706189		Screw   (Replaces: 700906)	1		Immediately	$ 6.47
17	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	1		Immediately	$ 16.80
18	715294		Nut, Tee	1	Appelez-nous	-
19	701741		Spacer, Oven	1	Appelez-nous	-
20	701742		Plate, Grounding	1	Appelez-nous	-
21	WP71001171		Screw   (Replaces: Y707745)	1			$ 6.26
22	701744		Screw	1	Appelez-nous	-
23	702791		Bracket	1	Appelez-nous	-
24	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.15
25	703265		Harness,(two Wires)	1	Appelez-nous	-
26	701702		Insulation, Wrap	1	Appelez-nous	-
27	701703		Insulation, Rear	1	Appelez-nous	-
28	Y702618		Clip, Oven	1	Appelez-nous	-
29	702594		Spacer	1			$ 641.16
30	702929		Button, Plug	1	Appelez-nous	-
