SELECT A DIAGRAM
01 - Basic Body
02 - Basic Body-internal Controls
03 - Body

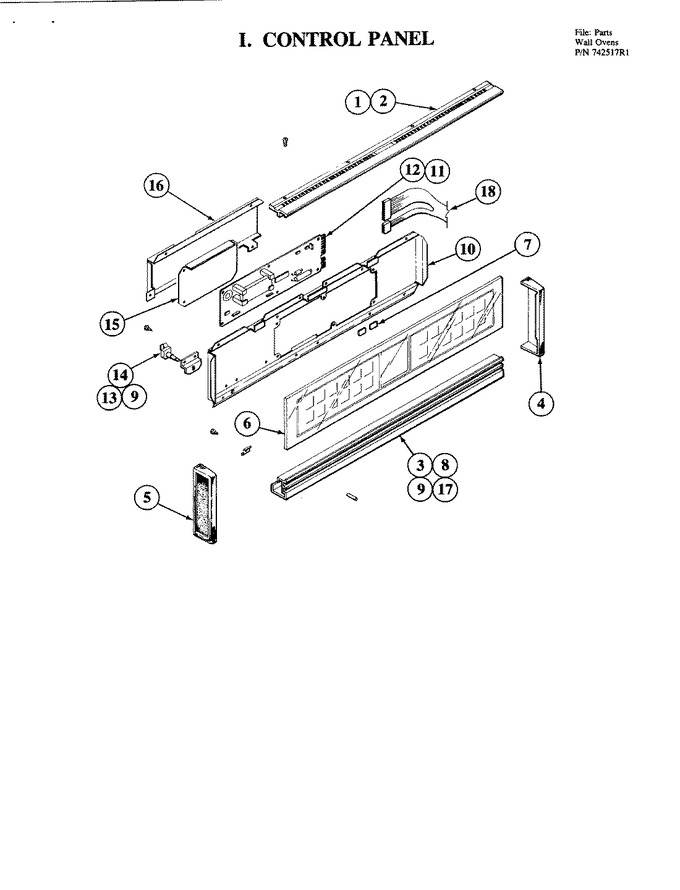

04 - Control Panel
05 - Door
06 - Fan-convection
07 - Fan-cooling
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 701634 | Extrusion, Top | 1 |
|
- | ||||
| 2 | 712066 | Screw | 1 |
|
- | ||||
| 3 | 702928 | Extrusion, Bottom | 1 |
|
- | ||||
| 4 | 701619 | Cap, End (rt) | 1 |
|
- | ||||
| 5 | 701635 | Cap, End (lt) | 1 |
|
- | ||||
| 6 | 703742 | Glass | 5 |
|
- | ||||
| 6 | 712071 | Glass | 1 |
|
- | ||||
| 7 | DE81-03511A | Pad, Spacer (Replaces: 701618) | 1 |
|
Immediately | $ 138.07 | |||
| 8 | 701609 | Angle, Attachment | 1 |
|
- | ||||
| 9 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 10 | 702788 | Bracket, P.c. Mount | 1 |
|
- | ||||
| 11 | 702800 | Support, Circuit Board | 1 |
|
- | ||||
| 12 | 702801 | Board, P.c.----na | 1 |
|
- | ||||
| 13 | 702790 | Switch, Mount Switch | 1 |
|
- | ||||
| 14 | 702794 | Switch, Push | 1 |
|
- | ||||
| 15 | 702799 | Shield, Moisture | 1 |
|
- | ||||
| 16 | 702789 | Cover | 1 |
|
- | ||||
| 17 | 702793 | Extension, Switch | 1 |
|
- | ||||
| 18 | 702816 | Harness, Low Voltage | 1 |
|
- |
