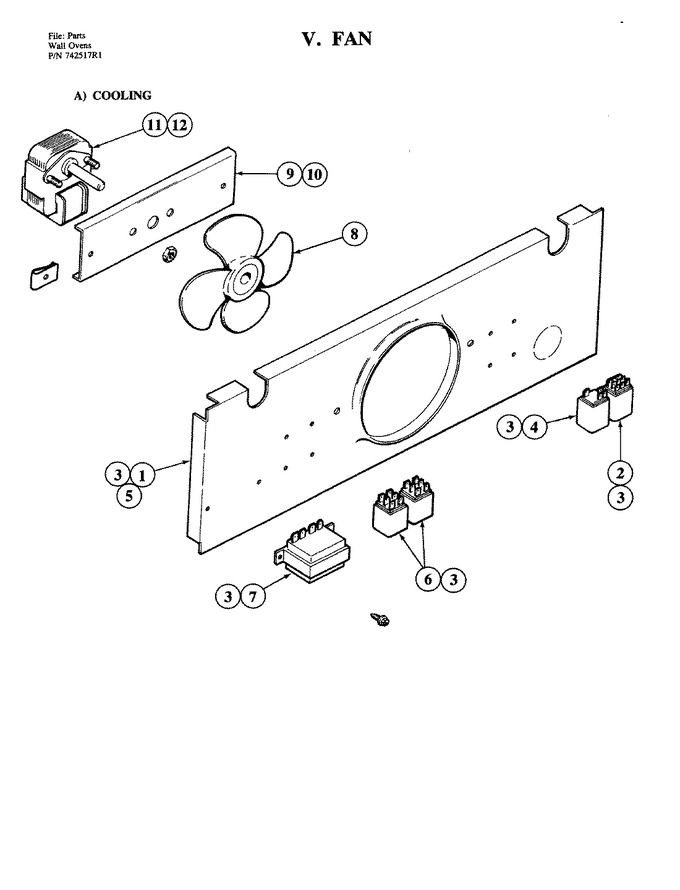

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE81-09287A | Plate, Motor (Replaces: 702044) | 1 |
|
$ 165.01 | ||||
| 2 | 702811 | Relay, Clean | 1 |
|
- | ||||
| 3 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 4 | 702810 | Relay, Convect | 1 |
|
- | ||||
| 5 | WP90767 | Screw (Replaces: Y700502) | 1 |
|
Immediately | $ 7.04 | |||
| 6 | 702809 | Relay, Bake & Broil | 1 |
|
- | ||||
| 7 | 702808 | Transformer | 1 |
|
- | ||||
| 8 | 702944 | Blade, Fan | 1 |
|
- | ||||
| 9 | DE81-07542A | Mount, Motor (Replaces: 701720) | 1 |
|
$ 275.66 | ||||
| 9 | Y703570 | Mount, Motor | 3 |
|
- | ||||
| 10 | 712038 | Tinnerman | 1 |
|
- | ||||
| 11 | Y701721 | Motor, Fan | 1 |
|
- | ||||
| 12 | M0282005 | Nut, Hex (Replaces: 701719) | 1 |
|
$ 7.07 | ||||
| 12 | Y715957 | Foam, Urethane | 1 |
|
- |
