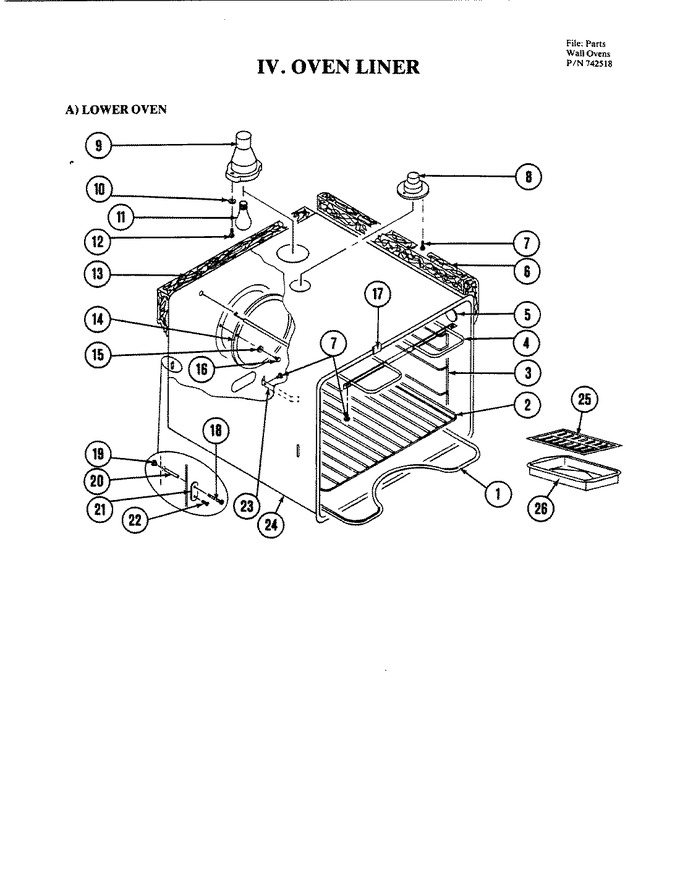

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPY04100020		Element, Bake 240v   (Replaces: Y701724)			Immediately	$ 136.96
1	WP179051		Screw   (Replaces: 708764)			Immediately	$ 7.16
2	Y701725		Rack, Oven		Appelez-nous	-
3	Y701728		Support, Rack		Appelez-nous	-
4	WP179051		Screw   (Replaces: 708764)			Immediately	$ 7.16
4	WPY04100016		Element, Broil   (Replaces: Y701729)				$ 137.21
5	712088		Cover, Meat Probe		Appelez-nous	-
5	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 12.62
6	701702		Insulation, Wrap		Appelez-nous	-
7	WPY706189		Screw   (Replaces: 700906)			Immediately	$ 6.47
8	701738		Tube, Vent		Appelez-nous	-
9	715281		Receptacle, Light		Appelez-nous	-
10	701736		Washer		Appelez-nous	-
11	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)			Immediately	$ 16.80
12	715485		Screw		Appelez-nous	-
13	701703		Insulation, Rear		Appelez-nous	-
14	702891		Plate, Back		Appelez-nous	-
15	WP74003976		Washer   (Replaces: 702592)				$ 6.47
16	701526		Screw		Appelez-nous	-
17	Y702618		Clip, Oven		Appelez-nous	-
17	WP210720		Rivet   (Replaces: 701662)				$ 12.14
18	701744		Screw		Appelez-nous	-
19	715294		Nut, Tee		Appelez-nous	-
20	701741		Spacer, Oven		Appelez-nous	-
21	701742		Plate, Grounding		Appelez-nous	-
22	WP71001171		Screw   (Replaces: Y707745)				$ 6.26
23	Y701745		Clip, Bulb		Appelez-nous	-
24	701733		Weld, Oven		Appelez-nous	-
25	4396923		Insert, Broil Pan   (Replaces: 703165)			Immediately	$ 52.04
26	4396923		Pan, Broil   (Replaces: 703164)			Immediately	$ 52.04
