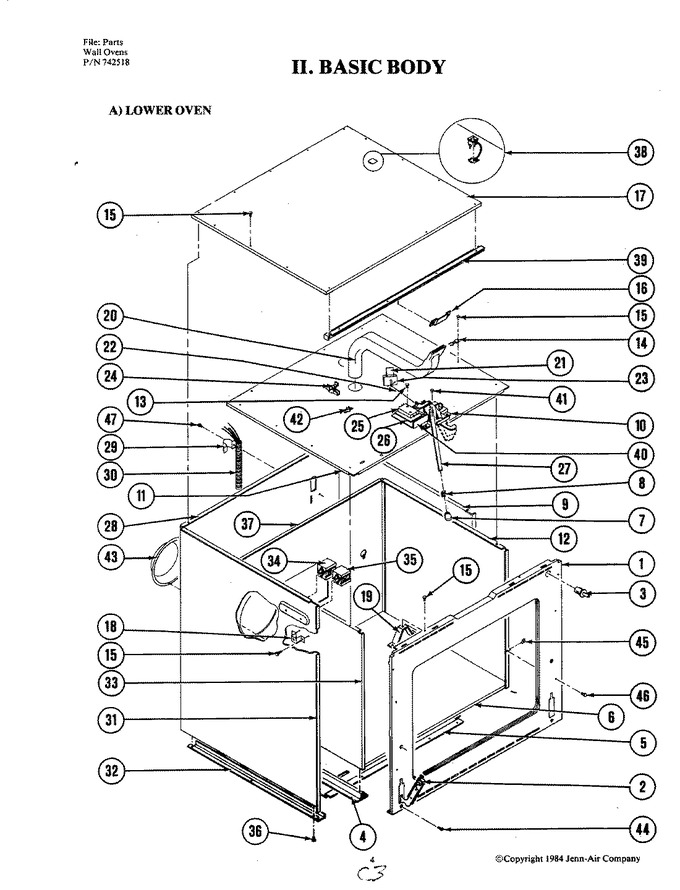

06 - Body-lower Oven


07 - Control Panel (lower)


08 - Control Panel (upper)


09 - Door (lower)


10 - Door (upper)


11 - Fan (lower)


12 - Fan (upper)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701663		Closure, Front		Appelez-nous	-
2	DA81-08981A		Hinge, Door   (Replaces: 702112)				$ 385.18
3	701666		Switch, Door		Appelez-nous	-
4	DE81-06547A		Support, Bottom   (Replaces: 701667)				$ 163.64
5	701848		Trim, Oven (lower)		Appelez-nous	-
5	701668		Panel, Bottom (outer)		Appelez-nous	-
6	DE81-07471A		Panel, Bottom   (Replaces: 701669)				$ 320.80
7	701670		Knob, Lever		Appelez-nous	-
8	701671		Spring, Knob		Appelez-nous	-
9	701672		Panel, Outer (rt)		Appelez-nous	-
10	701673		Latch		Appelez-nous	-
10	701675		Ring, Retaining		Appelez-nous	-
11	701674		Panel, Inner		Appelez-nous	-
12	701676		Panel, Side (rt)		Appelez-nous	-
13	701677		Screw		Appelez-nous	-
14	702746		Tie, Mount Cable		Appelez-nous	-
15	WP12990527		Screw   (Replaces: Y708955)			Immediately	$ 7.15
16	701680		Bracket, Vent Tube		Appelez-nous	-
16	WP90767		Screw   (Replaces: 715773)			Immediately	$ 7.04
17	701681		Top (outer)		Appelez-nous	-
18	712072		Bracket, Hat (side)		Appelez-nous	-
19	701683		Bracket, Hat (rear)		Appelez-nous	-
20	701684		Tube, Vent		Appelez-nous	-
21	701685		Solenoid		Appelez-nous	-
22	701688		Cable, Solenoid		Appelez-nous	-
23	Y701686		Pin, Cotter		Appelez-nous	-
24	WP74004005		Screw   (Replaces: 707365)				$ 6.95
24	701687		Thermostat		Appelez-nous	-
25	701689		Switch, Door Latch		Appelez-nous	-
26	712086		Insulator, Switch		Appelez-nous	-
27	Y701690		Lever, Latch		Appelez-nous	-
28	701691		Panel, Rear (outer)		Appelez-nous	-
29	DE81-08030A		Clamp, Conduit   (Replaces: 701692)				$ 131.01
30	701694		Cable, Wire		Appelez-nous	-
31	701695		Panel, Outer (lt)		Appelez-nous	-
32	700596		Rail, Bottom		Appelez-nous	-
33	DE81-09195A		Panel, Side (lt)   (Replaces: 701697)				$ 779.04
34	701698		Switch, Broil Cycle		Appelez-nous	-
35	701699		Switch, Bake Cycle		Appelez-nous	-
36	W11233072		Screw   (Replaces: 701638)			Immediately	$ 12.62
37	701701		Angle, Oven Support		Appelez-nous	-
37	701700		Panel, Back		Appelez-nous	-
38	701704		Outlet, Appliance		Appelez-nous	-
38	WP3400029		Nut   (Replaces: 712089)			Immediately	$ 6.98
38	WP3196183		Screw   (Replaces: Y701664)			Immediately	$ 6.98
39	703095		Support, Top		Appelez-nous	-
40	701706		Shield, Switch		Appelez-nous	-
41	707407		Screw				$ 6.42
42	Y702750		Limit, Fan		Appelez-nous	-
43	701716		Cover, Motor		Appelez-nous	-
44	WP3196183		Screw   (Replaces: Y701664)			Immediately	$ 6.98
45	Y700556		Clip, J		Appelez-nous	-
46	W11233072		Screw   (Replaces: Y708733)			Immediately	$ 12.62
47	WP7101P126-60		Screw   (Replaces: Y708310)			Immediately	$ 6.85
