01 - Basic Body-lower Oven (w205)

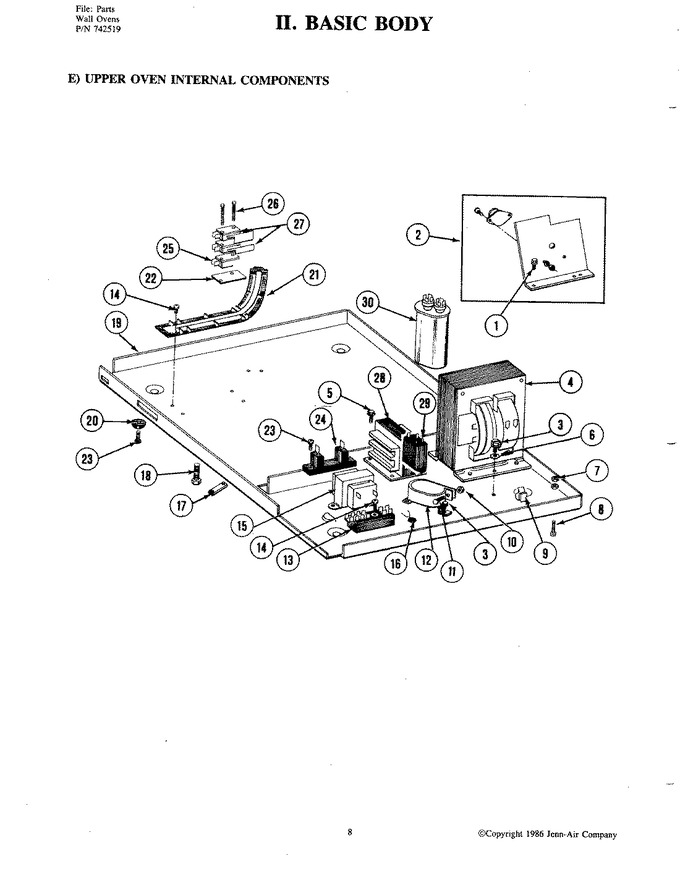

02 - Basic Body-lower Oven/internal (w205)


03 - Body


04 - Body (upper)


05 - Body (upper)


06 - Body (upper)


07 - Control Panel (lower W205)


08 - Control Panel (upper)


09 - Door (lower W205)


10 - Door (upper)


11 - Fan (lower Cooling)


12 - Fan (upper Cooling & Magnetron)


13 - Fan-lower Oven Convection (w225)


14 - Oven Liner-lower (w205)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	766149		Screw	1	Appelez-nous	-
2	766035		Triac Assembly	1	Appelez-nous	-
3	766003		Screw	1	Appelez-nous	-
4	766034		Transformer, Power Hv	1	Appelez-nous	-
5	766029		Screw	1	Appelez-nous	-
6	766028		Washer	1	Appelez-nous	-
7	766120		Nut	1	Appelez-nous	-
8	766121		Screw	1	Appelez-nous	-
9	766099		Clamp	1	Appelez-nous	-
10	766031		Nut	1	Appelez-nous	-
11	766036		Screw	1	Appelez-nous	-
12	766030		Bracket	1	Appelez-nous	-
13	766039		Block, Terminal	1	Appelez-nous	-
14	766022		Screw	1	Appelez-nous	-
15	766025		Transformer, Controller	1	Appelez-nous	-
16	766176		Varistor	1	Appelez-nous	-
17	766131		Plate Switch Nut	1	Appelez-nous	-
18	766150		Screw	1	Appelez-nous	-
19	766247		Base Assembly	1	Appelez-nous	-
20	766045		Bumper Cushion	1	Appelez-nous	-
21	766021		Door Arm Guide	1	Appelez-nous	-
22	766151		Insulator	1	Appelez-nous	-
23	WP250830		Screw   (Replaces: 766043)	1			$ 7.16
24	766042		Rectifier	1	Appelez-nous	-
25	766023		Door Light Switch	1	Appelez-nous	-
26	766143		Screw	1	Appelez-nous	-
27	766024		Safety Switch	1	Appelez-nous	-
28	766182		Transformer, Filament	1	Appelez-nous	-
29	766244		Relay-power	1	Appelez-nous	-
30	766178		Capacitor	1	Appelez-nous	-
