SELECT A DIAGRAM

01 - Basic Body-lower Oven (w205)


02 - Basic Body-lower Oven/internal (w205)


03 - Body


04 - Body (upper)


05 - Body (upper)


06 - Body (upper)


07 - Control Panel (lower W205)


08 - Control Panel (upper)


09 - Door (lower W205)

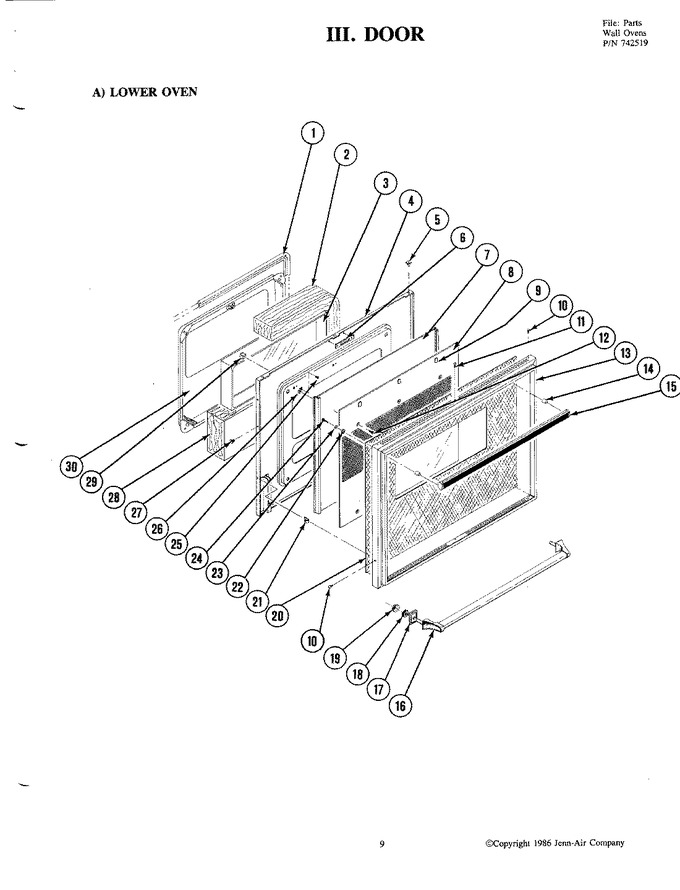

10 - Door (upper)


11 - Fan (lower Cooling)


12 - Fan (upper Cooling & Magnetron)


13 - Fan-lower Oven Convection (w225)


14 - Oven Liner-lower (w205)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP701650		Seal, Oven Door   (Replaces: 701650)	1-4			$ 184.62
2	DE81-08905A		Insulation, Side   (Replaces: 701659)	4			$ 160.26
2	701658		Insulation, Bottom	1-3	Appelez-nous	-
3	701648		Window Pack	1-4	Appelez-nous	-
4	712188		Liner, Door	4	Appelez-nous	-
4	712188		Liner, Door	1-3	Appelez-nous	-
6	Y712010		Plate, Latch (upper)	1-3	Appelez-nous	-
7	11034884		Baffle, Door   (Replaces: 701645)	1-2			$ 93.30
7	712250		Baffle	3	Appelez-nous	-
8	701644		Panel, Perforated	1-2	Appelez-nous	-
8	DE81-09358A		Panel, Perforated (upr)   (Replaces: 703784)	3			$ 54.82
9	W10840861		Pad, Spacer   (Replaces: Y702688)	1-4			$ 8.89
10	W11233072		Screw   (Replaces: Y707347)	1-4		Immediately	$ 12.62
11	W11233072		Screw   (Replaces: Y708733)	1-4		Immediately	$ 12.62
12	703958		Screw	3	Appelez-nous	-
12	WPY706189		Screw   (Replaces: 700906)	1-4		Immediately	$ 6.47
12	WPY706189		Screw   (Replaces: 700906)	1-2		Immediately	$ 6.47
13	703705		Frame	3	Appelez-nous	-
13	702774		Frame	1-4	Appelez-nous	-
13	702774		Frame	1-2	Appelez-nous	-
15	702930		Handle----na	1-4	Appelez-nous	-
16	Y703707		Handle	3	Appelez-nous	-
17	Y703430		Pad, Mounting	3	Appelez-nous	-
18	Y703433		Bushing	3	Appelez-nous	-
19	Y703431		Palnut	3	Appelez-nous	-
20	Y703706		Glass, Outer	3	Appelez-nous	-
20	701642		Glass, Screened	1-2	Appelez-nous	-
21	Y700834		Clip	1-4	Appelez-nous	-
22	715939		Bushing	1-3	Appelez-nous	-
23	Y700446		Washer	1-3			$ 5.27
24	Y703533		Screw	1-2	Appelez-nous	-
25	W11233072		Screw   (Replaces: Y707347)	1-3		Immediately	$ 12.62
26	701652		Bracket, Stand-off	1-3	Appelez-nous	-
27	DE81-07129A		Rivet, Accordion   (Replaces: 701641)	1-3			$ 128.48
28	DE81-08905A		Insulation, Side   (Replaces: 701659)	1-4			$ 160.26
29	Y700503		Clip, Retainer	1-4	Appelez-nous	-
30	Y701649		Plug, Oven	1-3	Appelez-nous	-
30	712065		Door Plug	1-3	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
