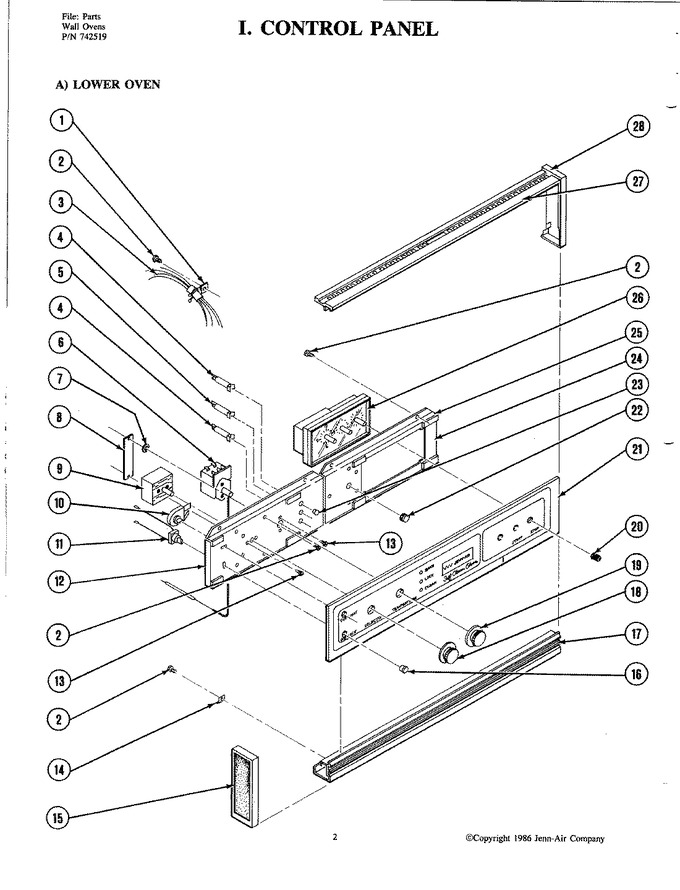

07 - Control Panel (lower W205)


08 - Control Panel (upper)


09 - Door (lower W205)


10 - Door (upper)


11 - Fan (lower Cooling)


12 - Fan (upper Cooling & Magnetron)


13 - Fan-lower Oven Convection (w225)


14 - Oven Liner-lower (w205)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	702746		Tie, Mount Cable	1-7	Appelez-nous	-
2	WP12990527		Screw   (Replaces: Y708955)	1-7		Immediately	$ 7.15
3	703717		Harness, Main	3-7	Appelez-nous	-
3	702886		Harness, Wire	1-2	Appelez-nous	-
4	Y700557		Light, Indicator	1-7	Appelez-nous	-
5	715396		Pilot Light & Lens	1-7	Appelez-nous	-
6	Y703148		Thermostat	1-7	Appelez-nous	-
7	Y707664		Washer	1-7	Appelez-nous	-
8	Y701623		Block, Terminal	1-7	Appelez-nous	-
9	Y703149		Switch, Selector	1-7	Appelez-nous	-
10	DE81-08481A		Switch, Push   (Replaces: 701621)	1-7			$ 606.80
11	Y701620		Switch, Momentary	1-7	Appelez-nous	-
12	DE81-06143A		Panel (lt)   (Replaces: 701615)	1-7			$ 393.48
13	71002058		Screw   (Replaces: Y702124)	1-7			$ 5.82
14	701609		Angle, Attachment	1-7	Appelez-nous	-
15	DE81-09833A		End Cap (lt-chr)   (Replaces: 703137)	3-7			$ 761.31
15	701635		Cap, End (lt)	1-2	Appelez-nous	-
16	701610		Bezel, Switch	1-7	Appelez-nous	-
17	701608		Extrusion, Bottom	1-7	Appelez-nous	-
18	12200031		Knob, Selector-lower   (Replaces: Y703501)	7			$ 60.55
18	12200031		Knob, Selector-lower   (Replaces: 703058)	1-6			$ 60.55
19	WPY703499		Knob, Thermostat   (Replaces: Y703499)	7			$ 43.52
19	WPY703499		Knob, Thermostat   (Replaces: 703057)	1-6			$ 43.52
20	Y702547		Knob, Clock	1-7	Appelez-nous	-
21	702931		Panel, Control	1-7	Appelez-nous	-
22	702286		Plug, Hole	1-7	Appelez-nous	-
23	Y700630		Lens, Indicator Lights	1-7			$ 4.18
24	703675		Panel (rt)	3	Appelez-nous	-
24	703675		Panel (rt)	1-7	Appelez-nous	-
24	DE81-03509A		Panel (rt)   (Replaces: 701617)	1-2			$ 221.06
25	DE81-03511A		Pad, Spacer   (Replaces: 701618)	1-7		Immediately	$ 138.07
26	703420		Clock	1-7	Appelez-nous	-
27	701634		Extrusion, Top	1-7	Appelez-nous	-
28	703136		End Cap (rt-chr)	3-7	Appelez-nous	-
28	701619		Cap, End (rt)	1-2	Appelez-nous	-
