Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 766000 Trim 1 Appelez-nous -
2 766014 Screw 1 Appelez-nous -
3 766192 Panel, Control 1 Appelez-nous -
4 766174 Pad, Touch 1 Appelez-nous -
5 766173 Microprocessor 1 Appelez-nous -
6 766140 Screw 1 Appelez-nous -
7 766005 Washer 1 Appelez-nous -
8 766006 Gasket 1 Appelez-nous -
9 766241 Insert 1 Appelez-nous -
10 766003 Screw 1 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

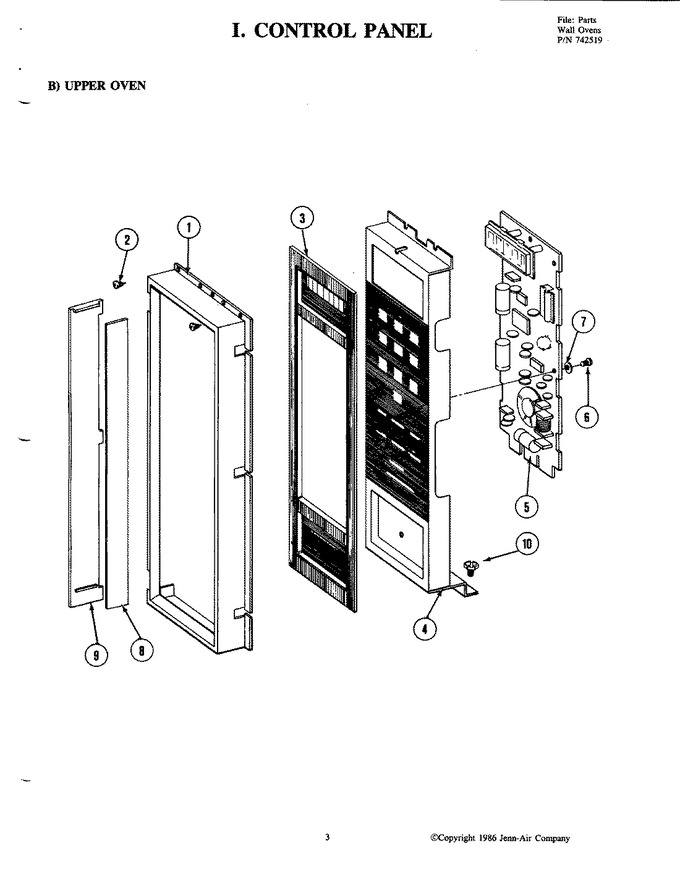

Diagram for W205
