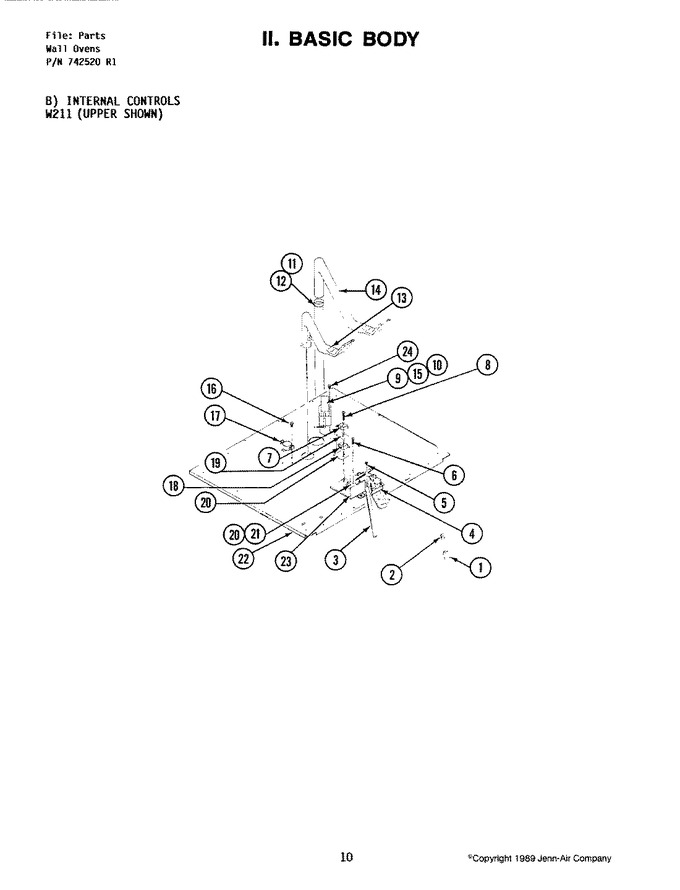

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701670		Knob, Lever	1-4	Appelez-nous	-
2	701671		Spring, Knob	1-4	Appelez-nous	-
3	Y701690		Lever, Latch	1-4	Appelez-nous	-
4	703269		Bracket, Extrusion (lower)	1-4	Appelez-nous	-
4	Y703357		Latch Assy.	1-4	Appelez-nous	-
5	707407		Screw	1-4			$ 6.42
6	DE81-04441A		Screw   (Replaces: 702380)	1-4			$ 329.62
7	702806		Switch, Door	1-4	Appelez-nous	-
8	702807		Screw	1-4	Appelez-nous	-
9	701685		Solenoid	1-4	Appelez-nous	-
9	Y702526		Solenoid	5	Appelez-nous	-
10	703301		Cable, Wire	1-4	Appelez-nous	-
11	703069		Tube, Vent (lower Oven)	1-4	Appelez-nous	-
12	703068		Tube, Vent-rear	1-4	Appelez-nous	-
13	703066		Tube, Vent Offset (upper)	1-4	Appelez-nous	-
14	703067		Tube, Vent-top (upper)	1-4	Appelez-nous	-
15	Y701686		Pin, Cotter	1-4	Appelez-nous	-
16	WP12990527		Screw   (Replaces: Y708955)	1-4		Immediately	$ 7.15
17	701687		Thermostat	1-4	Appelez-nous	-
17	703259		Limit, Thermostat	1-4	Appelez-nous	-
18	702805		Switch, Door	1-4	Appelez-nous	-
19	703264		Insulator	1-4	Appelez-nous	-
20	Y702350		Insulator	1-4	Appelez-nous	-
21	Y702360		Switch, Solenoid	1-4	Appelez-nous	-
22	701674		Panel, Inner	1-4	Appelez-nous	-
23	703087		Wire, Gray	1-4	Appelez-nous	-
23	703281		Harness, Wire (lower Oven)	1-4	Appelez-nous	-
23	701706		Shield, Switch	1-4	Appelez-nous	-
