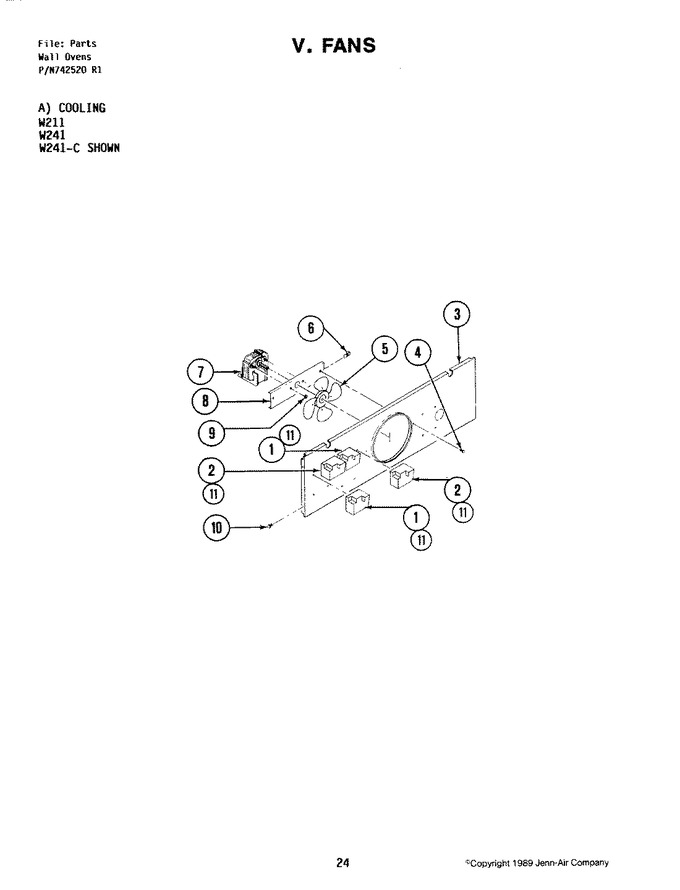

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701699		Switch, Bake Cycle	1-2	Appelez-nous	-
2	701698		Switch, Broil Cycle	1-2	Appelez-nous	-
3	Y715957		Foam, Urethane	1-2	Appelez-nous	-
3	703096		Plate, Motor	1-2	Appelez-nous	-
4	WP90767		Screw   (Replaces: 715773)	1-2		Immediately	$ 7.04
5	701718		Blade, Fan	1-2	Appelez-nous	-
6	Y700556		Clip, J	1-2	Appelez-nous	-
7	Y701721		Motor, Fan	1-2	Appelez-nous	-
8	Y703570		Mount, Motor	3	Appelez-nous	-
8	DE81-07542A		Mount, Motor   (Replaces: 701720)	1-2			$ 275.66
9	M0282005		Nut, Hex   (Replaces: 701719)	1-2			$ 7.07
10	WP12990527		Screw   (Replaces: Y708955)	1-2		Immediately	$ 7.15
