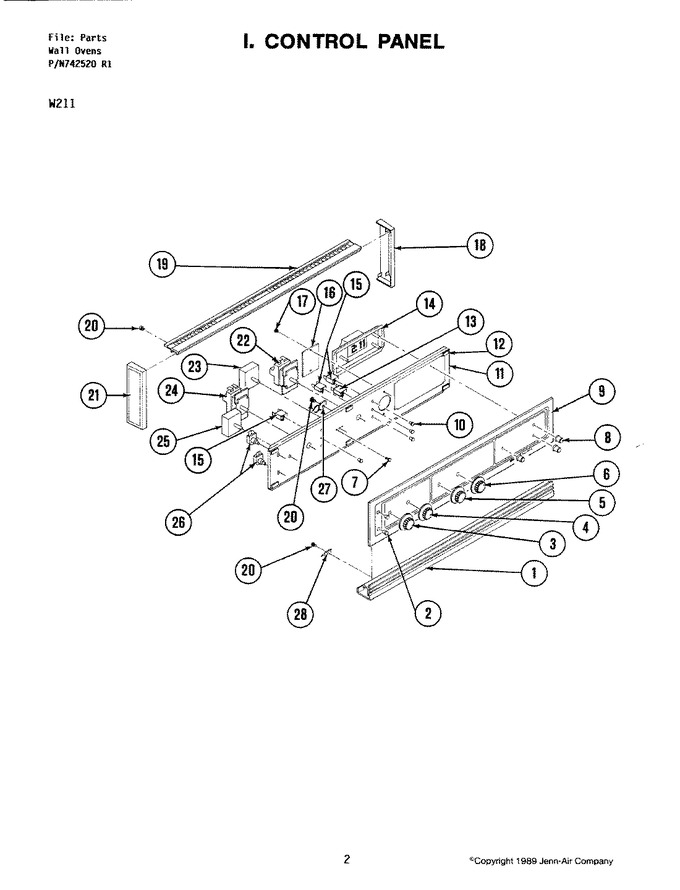

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	703073		Extrusion, Bottom	1	Appelez-nous	-
2	701610		Bezel, Switch	1	Appelez-nous	-
3	703278		Knob, Selector-lower	1	Appelez-nous	-
4	703279		Knob, Thermostat	1	Appelez-nous	-
5	12200031		Knob, Selector-lower   (Replaces: 703058)	1			$ 60.55
6	WPY703499		Knob, Thermostat   (Replaces: 703057)	1			$ 43.52
7	71002058		Screw   (Replaces: Y702124)	1			$ 5.82
8	Y702547		Knob, Clock	1	Appelez-nous	-
9	703276		Glass	1	Appelez-nous	-
10	Y700630		Lens, Indicator Lights	1			$ 4.18
11	703070		Panel, Control	1	Appelez-nous	-
12	DE81-03511A		Pad, Spacer   (Replaces: 701618)	1		Immediately	$ 138.07
13	Y702393		Light, Indicator-120v	1	Appelez-nous	-
14	701633		Clock	1	Appelez-nous	-
15	Y702394		Light, Indicator 240v	1	Appelez-nous	-
16	703277		Plate, Cover	1	Appelez-nous	-
17	WP74004005		Screw   (Replaces: Y708359)	1			$ 6.95
18	701619		Cap, End (rt)	1	Appelez-nous	-
19	703072		Extrusion, Top	1	Appelez-nous	-
20	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.15
21	701635		Cap, End (lt)	1	Appelez-nous	-
22	703080		Thermostat-upper	1	Appelez-nous	-
23	703078		Switch, Selector (upper)	1	Appelez-nous	-
24	703081		Thermostat-lower	1	Appelez-nous	-
25	703079		Selector-lower	1	Appelez-nous	-
26	DE81-08481A		Switch, Push   (Replaces: 701621)	1			$ 606.80
27	702746		Tie, Mount Cable	1	Appelez-nous	-
28	703290		Wire, Resistor	1	Appelez-nous	-
28	DE81-09159A		Wire, Wire   (Replaces: 703370)	1			$ 313.88
28	703089		Wire, Tan	1	Appelez-nous	-
28	703282		Harness	1	Appelez-nous	-
28	703280		Harness-wire	1	Appelez-nous	-
28	DE81-04412A		Wire, Pink   (Replaces: 703090)	1			$ 327.97
28	701609		Angle, Attachment	1	Appelez-nous	-
