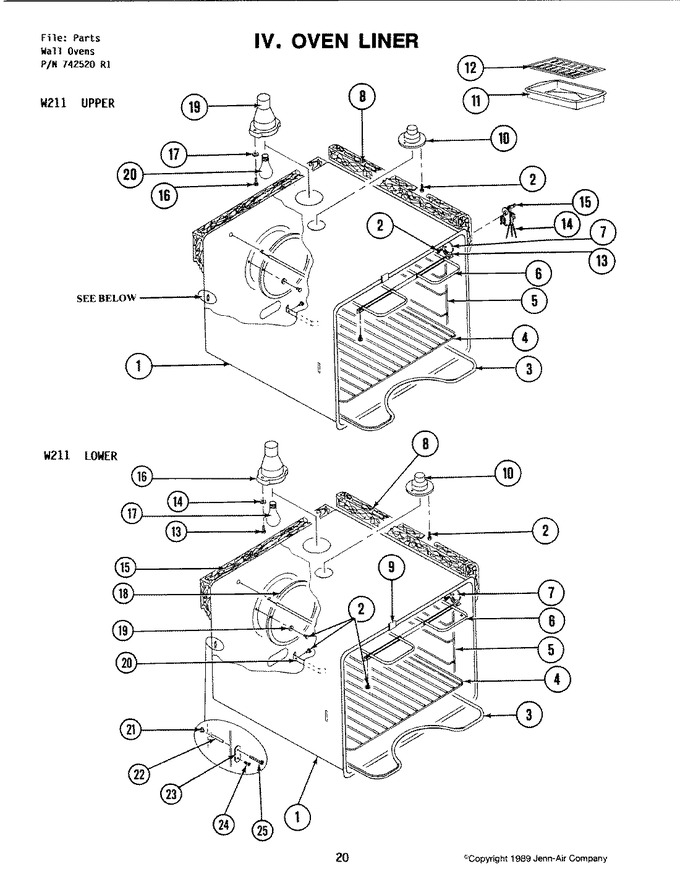

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	712069		Weld, Oven	1-3	Appelez-nous	-
1	712237		Liner,oven	4	Appelez-nous	-
2	Y702882		Screw	1-3	Appelez-nous	-
3	WPY04100020		Element, Bake 240v   (Replaces: Y701724)	1-3		Immediately	$ 136.96
4	Y701725		Rack, Oven	1-3	Appelez-nous	-
5	Y701728		Support, Rack	1-3	Appelez-nous	-
6	WP179051		Screw   (Replaces: 708764)	1-3		Immediately	$ 7.16
6	WPY04100016		Element, Broil   (Replaces: Y701729)	1-3			$ 137.21
7	712088		Cover, Meat Probe	1-3	Appelez-nous	-
8	701702		Insulation, Wrap	1-3	Appelez-nous	-
9	WP210720		Rivet   (Replaces: 701662)	1-3			$ 12.14
9	Y702618		Clip, Oven	1-3	Appelez-nous	-
10	701738		Tube, Vent	1-3	Appelez-nous	-
10	712184		Eliminator, Smoke (lower)	1-3	Appelez-nous	-
11	4396923		Pan, Broil   (Replaces: 703164)	1-3		Immediately	$ 52.04
12	4396923		Insert, Broil Pan   (Replaces: 703165)	1-3		Immediately	$ 52.04
13	715485		Screw	1-3	Appelez-nous	-
14	701736		Washer	1-3	Appelez-nous	-
15	701703		Insulation, Rear	1-3	Appelez-nous	-
16	715281		Receptacle, Light	1-3	Appelez-nous	-
17	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	1-3		Immediately	$ 16.80
18	702891		Plate, Back	1-3	Appelez-nous	-
19	WP74003976		Washer   (Replaces: 702592)	1-3			$ 6.47
20	Y701541		Clip, Bulb	1-3	Appelez-nous	-
20	Y701745		Clip, Bulb	1-3	Appelez-nous	-
21	715294		Nut, Tee	1-3	Appelez-nous	-
22	701741		Spacer, Oven	1-3	Appelez-nous	-
23	701742		Plate, Grounding	1-3	Appelez-nous	-
24	WP71001171		Screw   (Replaces: Y712087)	1-3			$ 6.26
25	701744		Screw	1-3	Appelez-nous	-
