SELECT A DIAGRAM

01 - Blower Motor (cooling Fan Lower)


02 - Blower Motor (cooling Fan Upper)


03 - Body


04 - Body (lower)


05 - Body (lower)


06 - Body (upper)


07 - Control Panel (lower)


08 - Control Panel (upper)


09 - Door (lower)


10 - Door (upper)


11 - Internal Controls (lower)


12 - Internal Controls (upper)

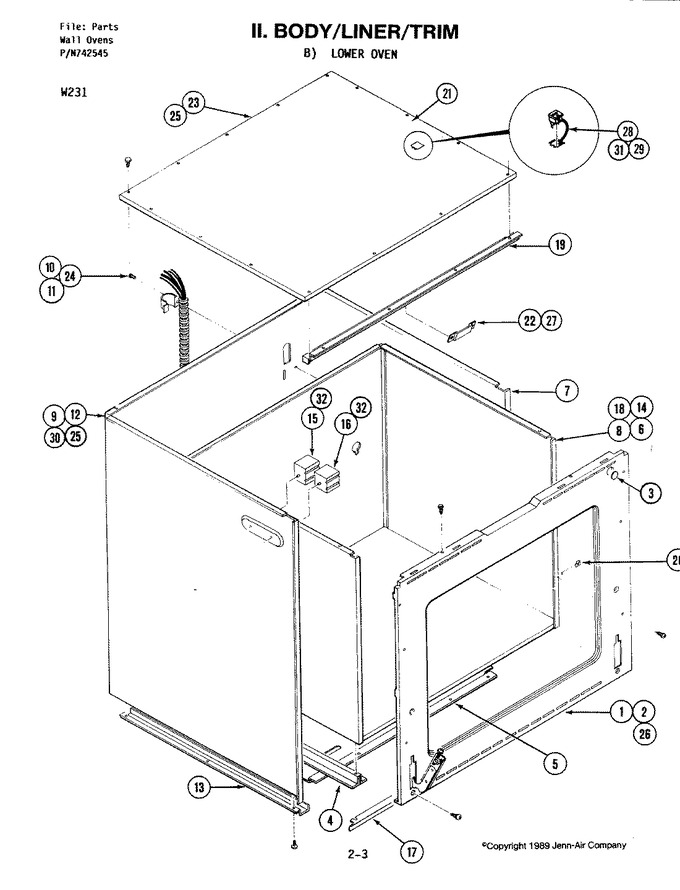

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	703609		Closure, Front	1	Appelez-nous	-
2	Y703419		Hinge	1	Appelez-nous	-
2	WP3196183		Screw   (Replaces: Y701664)	1		Immediately	$ 6.98
3	703688		Button, Plug	1	Appelez-nous	-
4	DE81-06547A		Support, Bottom   (Replaces: 701667)	1			$ 163.64
5	701668		Panel, Bottom (outer)	1	Appelez-nous	-
6	DE81-07471A		Panel, Bottom   (Replaces: 701669)	1			$ 320.80
7	701672		Panel, Outer (rt)	1	Appelez-nous	-
8	701676		Panel, Side (rt)	1	Appelez-nous	-
9	701691		Panel, Rear (outer)	1	Appelez-nous	-
10	DE81-08030A		Clamp, Conduit   (Replaces: 701692)	1			$ 131.01
11	712180		Cable, Wire	1	Appelez-nous	-
12	701695		Panel, Outer (lt)	1	Appelez-nous	-
13	700596		Rail, Bottom	1	Appelez-nous	-
14	DE81-09195A		Panel, Side (lt)   (Replaces: 701697)	1			$ 779.04
15	704355		Switch, Broil Cycle	1	Appelez-nous	-
16	704354		Switch, Bake Cycle	1	Appelez-nous	-
17	701848		Trim, Oven (lower)	1	Appelez-nous	-
18	701701		Angle, Oven Support	1	Appelez-nous	-
18	701703		Insulation, Rear	1	Appelez-nous	-
18	701700		Panel, Back	1	Appelez-nous	-
18	701702		Insulation, Wrap	1	Appelez-nous	-
19	703095		Support, Top	1	Appelez-nous	-
20	Y700556		Clip, J	1	Appelez-nous	-
21	WP3196183		Screw   (Replaces: Y701664)	1		Immediately	$ 6.98
22	701680		Bracket, Vent Tube	1	Appelez-nous	-
23	701681		Top (outer)	1	Appelez-nous	-
24	WP7101P126-60		Screw   (Replaces: Y708310)	1		Immediately	$ 6.85
25	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.15
26	W11233072		Screw   (Replaces: Y708733)	1		Immediately	$ 12.62
27	WP90767		Screw   (Replaces: 715773)	1		Immediately	$ 7.04
28	701704		Outlet, Appliance	1	Appelez-nous	-
29	WP3400029		Nut   (Replaces: 715634)	1		Immediately	$ 6.98
30	703551		Cover, Motor Opening	1	Appelez-nous	-
31	Y708690		Screw	1	Appelez-nous	-
32	704335		Screw	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
