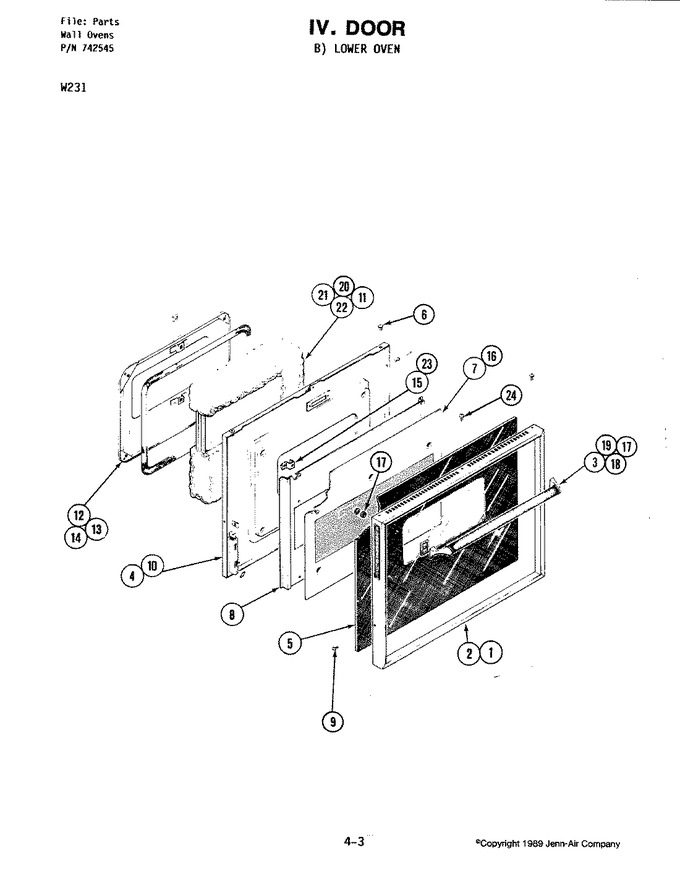

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw   (Replaces: Y707347)	1		Immediately	$ 12.62
2	704999		Frame (stnls)	1	Appelez-nous	-
3	Y703707		Handle	1	Appelez-nous	-
4	704487		Clip	1	Appelez-nous	-
5	Y703706		Glass, Outer	1	Appelez-nous	-
6	701643		Nut, Push In	1	Appelez-nous	-
7	DE81-09358A		Panel, Perforated (upr)   (Replaces: 703784)	1			$ 54.82
8	712250		Baffle	1	Appelez-nous	-
9	704745		Screw, Flat	1	Appelez-nous	-
10	DE81-07129A		Rivet, Accordion   (Replaces: 701641)	1			$ 128.48
10	712188		Liner, Door	1	Appelez-nous	-
11	701648		Window Pack	1	Appelez-nous	-
12	Y701649		Plug, Oven	1	Appelez-nous	-
13	WP701650		Seal, Oven Door   (Replaces: 701650)	1			$ 184.62
14	Y700503		Clip, Retainer	1	Appelez-nous	-
15	701652		Bracket, Stand-off	1	Appelez-nous	-
16	Y704223		Bumper, Button	1	Appelez-nous	-
17	Y703433		Bushing	1	Appelez-nous	-
18	Y703431		Palnut	1	Appelez-nous	-
19	Y703430		Pad, Mounting	1	Appelez-nous	-
20	701658		Insulation, Bottom	1	Appelez-nous	-
21	DE81-08905A		Insulation, Side   (Replaces: 701659)	1			$ 160.26
22	701660		Insulation, Top	1	Appelez-nous	-
23	703958		Screw	1	Appelez-nous	-
24	701149		Locktite (handle)	1	Appelez-nous	-
24	W11233072		Screw   (Replaces: Y708733)	1		Immediately	$ 12.62
