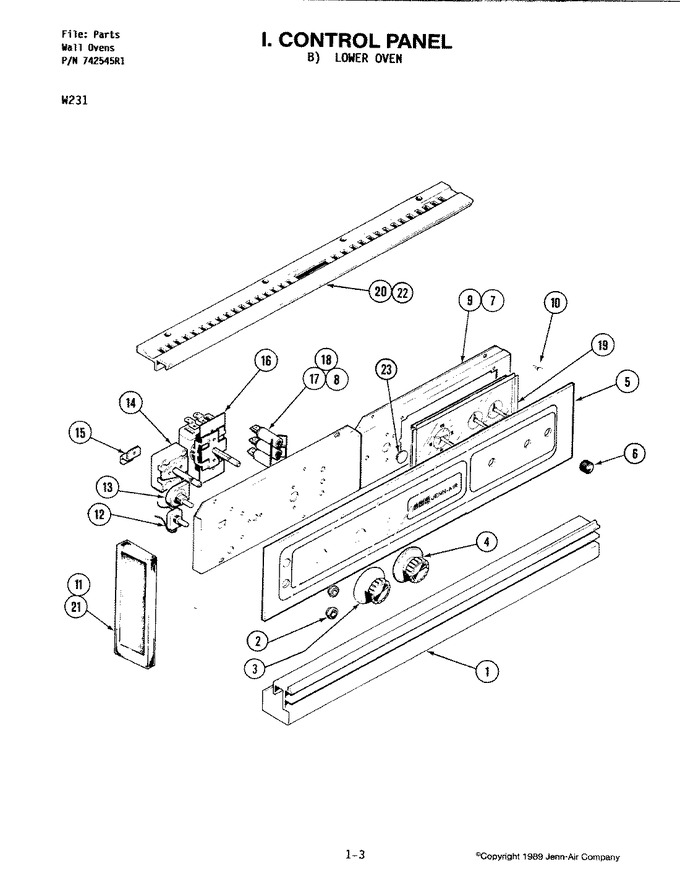

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 701608 | Extrusion, Bottom | 1 |
|
- | ||||
| 2 | 701610 | Bezel, Switch | 1 |
|
- | ||||
| 3 | 12200031 | Knob, Selector-lower (Replaces: Y703501) | 1 |
|
$ 60.55 | ||||
| 4 | WPY703499 | Knob, Thermostat (Replaces: Y703499) | 1 |
|
$ 43.52 | ||||
| 5 | 702931 | Panel, Control | 1 |
|
- | ||||
| 6 | Y702547 | Knob, Clock | 1 |
|
- | ||||
| 7 | DE81-06143A | Panel (lt) (Replaces: 701615) | 1 |
|
$ 393.48 | ||||
| 8 | Y700630 | Lens, Indicator Lights | 1 |
|
$ 4.18 | ||||
| 9 | 705336 | Panel, Control (rt) | 1 |
|
- | ||||
| 10 | 705331 | Pad, Spacer | 1 |
|
- | ||||
| 11 | 703136 | End Cap (rt-chr) | 1 |
|
- | ||||
| 12 | Y701620 | Switch, Momentary | 1 |
|
- | ||||
| 13 | 700558 | Switch, Light (push) | 1 |
|
- | ||||
| 14 | Y703149 | Switch, Selector | 1 |
|
- | ||||
| 15 | 701609 | Angle, Attachment | 1 |
|
- | ||||
| 16 | 71002058 | Screw (Replaces: Y702124) | 1 |
|
$ 5.82 | ||||
| 16 | Y703148 | Thermostat | 1 |
|
- | ||||
| 17 | Y700557 | Light, Indicator | 1 |
|
- | ||||
| 18 | Y702393 | Light, Indicator-120v | 1 |
|
- | ||||
| 18 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 19 | 703420 | Clock | 1 |
|
- | ||||
| 20 | 701634 | Extrusion, Top | 1 |
|
- | ||||
| 21 | Y701623 | Block, Terminal | 1 |
|
- | ||||
| 21 | 702746 | Tie, Mount Cable | 1 |
|
- | ||||
| 21 | Y707664 | Washer | 1 |
|
- | ||||
| 21 | 703717 | Harness, Main | 1 |
|
- | ||||
| 21 | DE81-09833A | End Cap (lt-chr) (Replaces: 703137) | 1 |
|
$ 761.31 | ||||
| 22 | 712066 | Screw | 1 |
|
- | ||||
| 23 | 702286 | Plug, Hole | 1 |
|
- |
