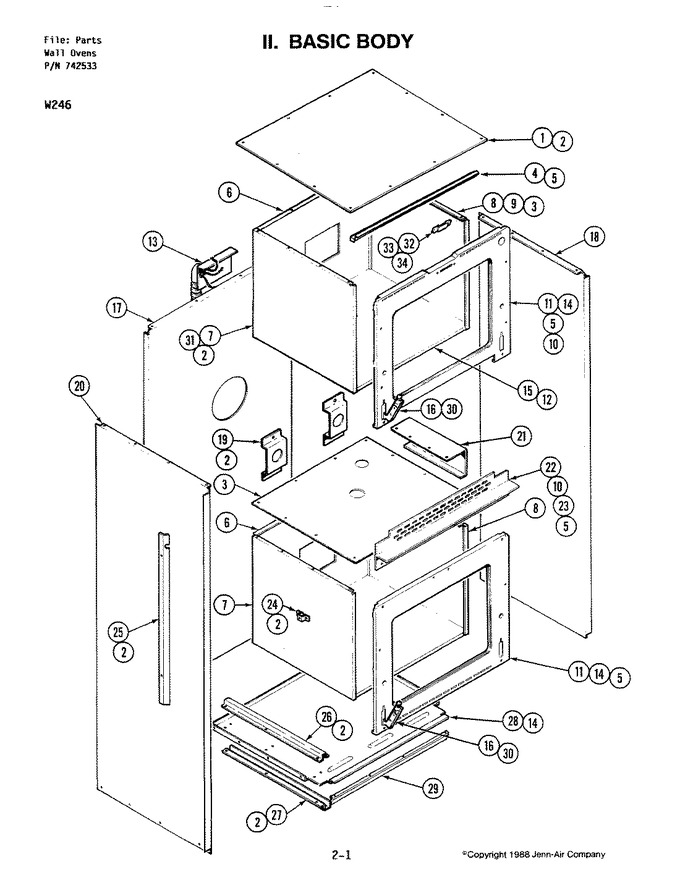

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 701681 | Top (outer) | 1 |
|
- | ||||
| 2 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 3 | 703768 | Panel, Top | 1 |
|
- | ||||
| 4 | 703095 | Support, Top | 1 |
|
- | ||||
| 5 | Y700556 | Clip, J | 1 |
|
- | ||||
| 6 | 701700 | Panel, Back | 1 |
|
- | ||||
| 7 | DE81-09195A | Panel, Side (lt) (Replaces: 701697) | 1 |
|
$ 779.04 | ||||
| 8 | 701676 | Panel, Side (rt) | 1 |
|
- | ||||
| 9 | Y703352 | Grommet, Flexible | 1 |
|
- | ||||
| 10 | 701666 | Switch, Door | 1 |
|
- | ||||
| 11 | 703255 | Closure, Front (lower) | 1 |
|
- | ||||
| 11 | 703254 | Closure, Front (upper) | 1 |
|
- | ||||
| 12 | 701701 | Angle, Oven Support | 1 |
|
- | ||||
| 13 | 712185 | Assy., Wire Cable | 1 |
|
- | ||||
| 14 | W11233072 | Screw (Replaces: Y708733) | 1 |
|
Immediately | $ 12.62 | |||
| 15 | DE81-07471A | Panel, Bottom (Replaces: 701669) | 1 |
|
$ 320.80 | ||||
| 16 | Y703419 | Hinge | 1 |
|
- | ||||
| 17 | DE81-04658A | Panel, Outer (rear) (Replaces: 703097) | 1 |
|
$ 186.44 | ||||
| 18 | 703098 | Panel, Outer (rt) | 1 |
|
- | ||||
| 19 | 703252 | Spacer, Rear (lower Oven) | 1 |
|
- | ||||
| 20 | 703099 | Panel, Outer (lt) | 1 |
|
- | ||||
| 21 | DE81-06242A | Spacer, Side (Replaces: 703253) | 1 |
|
$ 284.36 | ||||
| 22 | 704261 | Extrusion, Center | 1 |
|
- | ||||
| 23 | WPY706189 | Screw No.8bx38 (Replaces: 703506) | 1 |
|
Immediately | $ 6.47 | |||
| 24 | 712072 | Bracket, Hat (side) | 1 |
|
- | ||||
| 25 | 703251 | Shield, Capillary Tube | 1 |
|
- | ||||
| 26 | DE81-06547A | Support, Bottom (Replaces: 701667) | 1 |
|
$ 163.64 | ||||
| 27 | 700596 | Rail, Bottom | 1 |
|
- | ||||
| 28 | 701668 | Panel, Bottom (outer) | 1 |
|
- | ||||
| 29 | 704642 | Trim, Oven (lwr-blk) | 1 |
|
- | ||||
| 30 | WP3196183 | Screw (Replaces: Y701664) | 1 |
|
Immediately | $ 6.98 | |||
| 31 | 701683 | Bracket, Hat (rear) | 1 |
|
- | ||||
| 32 | 701680 | Bracket, Vent Tube | 1 |
|
- | ||||
| 33 | 703353 | Shield, Vent | 1 |
|
- | ||||
| 34 | WP90767 | Screw (Replaces: 715773) | 1 |
|
Immediately | $ 7.04 |
