01 - Basic Body (w246)


02 - Blower Motor-convection Fan-upper (w246)


03 - Blower Motor-cooling Fan (w246)


04 - Control Panel (w246)


05 - Door (w246)


06 - Internal Controls (w246)


07 - Oven Liner (w246)

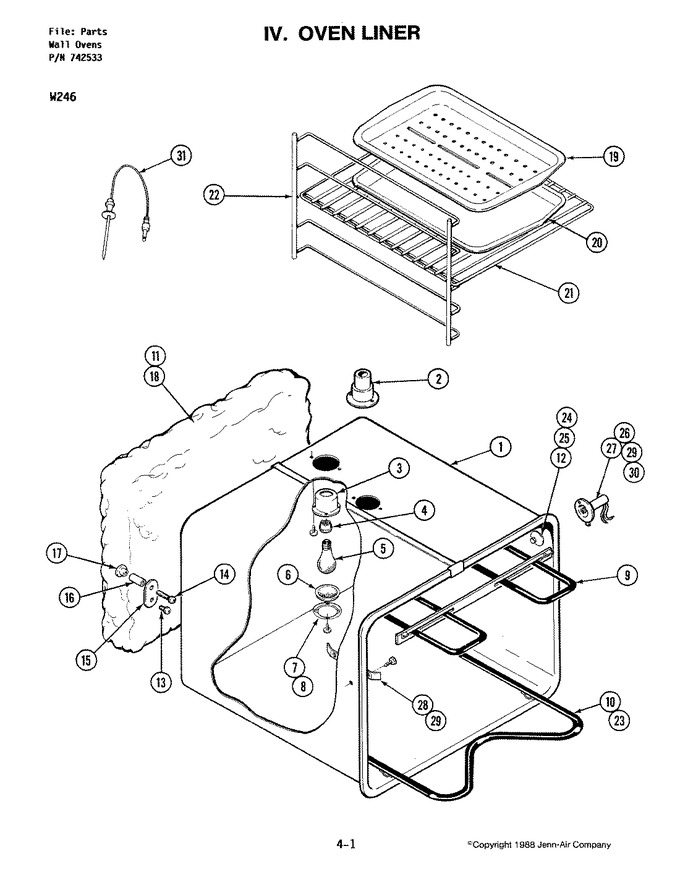

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y712376		Liner, Oven	1	Appelez-nous	-
1	Y712377		Weld, Oven	1	Appelez-nous	-
2	701738		Tube, Vent	1	Appelez-nous	-
3	704142		Receptacle, Holder	1	Appelez-nous	-
4	Y704145		Receptacle, Snap-in	1	Appelez-nous	-
5	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	1		Immediately	$ 16.80
6	Y704143		Lens, Light	1	Appelez-nous	-
7	Y704144		Retainer, Lens	1	Appelez-nous	-
8	WP1163283		Screw   (Replaces: Y703741)	1			$ 6.47
9	WPY04100016		Element, Broil   (Replaces: Y701729)	1			$ 137.21
10	WPY04100020		Element, Bake 240v   (Replaces: Y701724)	1		Immediately	$ 136.96
11	701702		Insulation, Wrap	1	Appelez-nous	-
12	712088		Cover, Meat Probe	1	Appelez-nous	-
12	DE81-03805A		Cover (upper)   (Replaces: 701732)	1			$ 113.65
13	WP71001171		Screw   (Replaces: Y707745)	1			$ 6.26
14	701744		Screw	1	Appelez-nous	-
15	701742		Plate, Grounding	1	Appelez-nous	-
16	701741		Spacer, Oven	1	Appelez-nous	-
17	715294		Nut, Tee		Appelez-nous	-
18	701703		Insulation, Rear	1	Appelez-nous	-
19	4396923		Insert, Broil Pan   (Replaces: 703165)	1		Immediately	$ 52.04
20	4396923		Pan, Broil   (Replaces: 703164)	1		Immediately	$ 52.04
21	Y701725		Rack, Oven	1	Appelez-nous	-
22	Y701728		Support, Rack	1	Appelez-nous	-
23	WP179051		Screw   (Replaces: 708764)	1		Immediately	$ 7.16
24	703773		Screw	1	Appelez-nous	-
25	703007		Standoff	1	Appelez-nous	-
26	703262		Harness, Probe	1	Appelez-nous	-
27	DE81-03314A		Jack, Probe   (Replaces: 703263)	1			$ 846.09
28	Y701541		Clip, Bulb	1	Appelez-nous	-
29	WP1163283		Screw   (Replaces: Y703741)	1			$ 6.47
30	Y701731		Mount, Meat Probe	1	Appelez-nous	-
31	WP71001870		Probe, Meat   (Replaces: Y700884)	1			$ 201.71
