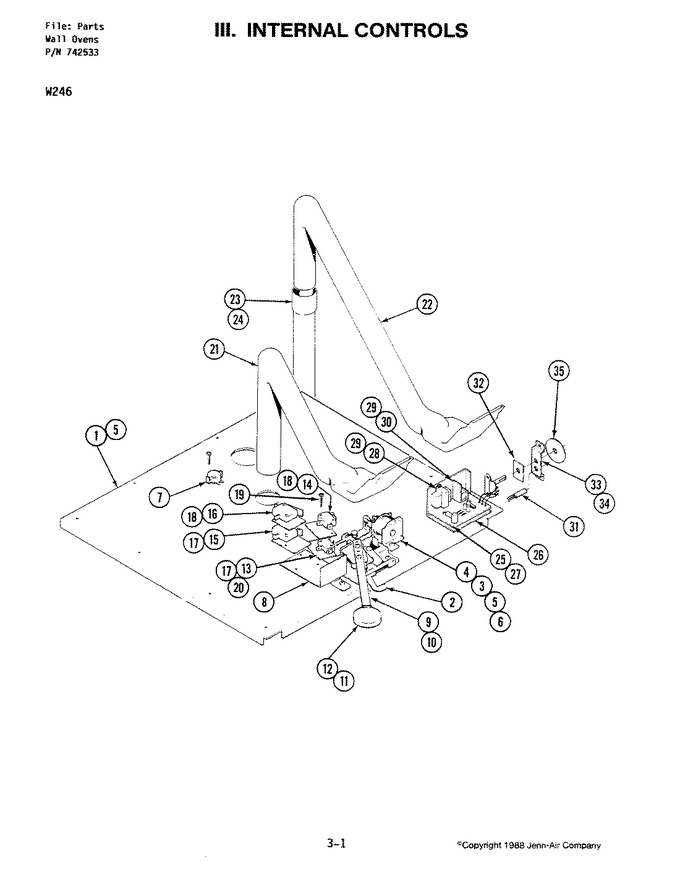

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704155 | Panel-top | 1 |
|
- | ||||
| 2 | Y703357 | Latch Assy. | 1 |
|
- | ||||
| 3 | Y701686 | Pin, Cotter | 1 |
|
- | ||||
| 4 | Y702526 | Solenoid | 1 |
|
- | ||||
| 5 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 6 | 703767 | Wire, Gray | 1 |
|
- | ||||
| 7 | 703259 | Limit, Thermostat | 1 |
|
- | ||||
| 7 | 701687 | Thermostat | 1 |
|
- | ||||
| 8 | Y703706 | Glass, Outer | 1 |
|
- | ||||
| 9 | Y704240 | Lever, Latch (blk) | 1 |
|
- | ||||
| 10 | 707407 | Screw | 1 |
|
$ 6.42 | ||||
| 11 | 701671 | Spring, Knob | 1 |
|
- | ||||
| 12 | Y703932 | Knob (blk) | 1 |
|
- | ||||
| 13 | Y702360 | Switch, Solenoid | 1 |
|
- | ||||
| 14 | Y703351 | Switch, Latch-top Front | 1 |
|
- | ||||
| 15 | 702805 | Switch, Door | 1 |
|
- | ||||
| 16 | 702806 | Switch, Door | 1 |
|
- | ||||
| 17 | Y702350 | Insulator | 1 |
|
- | ||||
| 18 | 703264 | Insulator | 1 |
|
- | ||||
| 19 | 702807 | Screw | 1 |
|
- | ||||
| 20 | DE81-04441A | Screw (Replaces: 702380) | 1 |
|
$ 329.62 | ||||
| 21 | 703066 | Tube, Vent Offset (upper) | 1 |
|
- | ||||
| 22 | 703067 | Tube, Vent-top (upper) | 1 |
|
- | ||||
| 23 | 703068 | Tube, Vent-rear | 1 |
|
- | ||||
| 24 | 703069 | Tube, Vent (lower Oven) | 1 |
|
- | ||||
| 25 | 703268 | Harness, P.c. Board | 1 |
|
- | ||||
| 25 | 704242 | Board, Circuit | 1 |
|
- | ||||
| 26 | 701630 | Bracket, Mount | 1 |
|
- | ||||
| 27 | 700893 | Support, P.c. Board | 1 |
|
- | ||||
| 28 | 701629 | Transformer | 1 |
|
- | ||||
| 29 | Y700584 | Screw | 1 |
|
- | ||||
| 30 | Y703274 | Relay | 1 |
|
- | ||||
| 31 | 703075 | Light, Indicator | 1 |
|
- | ||||
| 32 | 703093 | Insulator, Control | 1 |
|
- | ||||
| 33 | DE81-03269A | Bracket, Control (Replaces: 703092) | 1 |
|
$ 493.49 | ||||
| 34 | WP74004005 | Screw (Replaces: Y708359) | 1 |
|
$ 6.95 | ||||
| 35 | 703076 | Nut-push On | 1 |
|
- | ||||
| 35 | DE81-04411A | Dial, Temp Control (Replaces: 703094) | 1 |
|
$ 320.99 |
