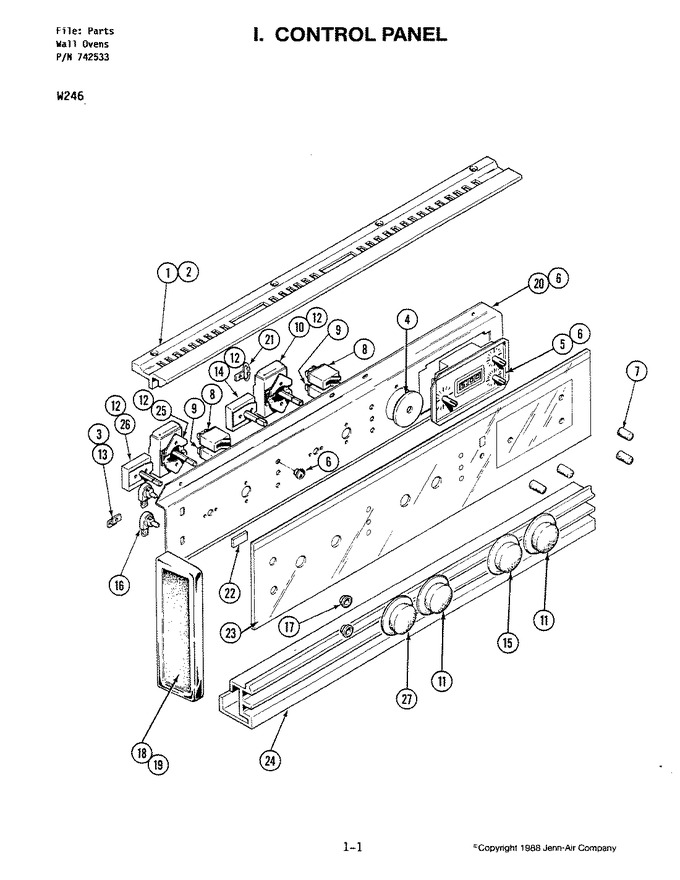

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704251 | Extrusion, Top | 1 |
|
- | ||||
| 2 | 712066 | Screw | 1 |
|
- | ||||
| 3 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 4 | DE81-04411A | Dial, Temp Control (Replaces: 703094) | 1 |
|
$ 320.99 | ||||
| 5 | 704246 | Clock | 1 |
|
- | ||||
| 6 | Y700630 | Lens, Indicator Lights | 1 |
|
$ 4.18 | ||||
| 7 | WP7711P492-60 | Knob, Clock (blk) (Replaces: Y703910) | 1 |
|
$ 12.13 | ||||
| 8 | Y702394 | Light, Indicator 240v | 1 |
|
- | ||||
| 9 | Y702393 | Light, Indicator-120v | 1 |
|
- | ||||
| 10 | 703080 | Thermostat-upper | 1 |
|
- | ||||
| 11 | 703917 | Knob, Thermostat | 1 |
|
$ 21.34 | ||||
| 12 | 71002058 | Screw (Replaces: Y702124) | 1 |
|
$ 5.82 | ||||
| 13 | 701609 | Angle, Attachment | 1 |
|
- | ||||
| 14 | 703077 | Switch, Selector Upper | 1 |
|
- | ||||
| 15 | 703901 | Knob, Selector Switch (blk) | 1 |
|
- | ||||
| 16 | DE81-08481A | Switch, Push (Replaces: 701621) | 1 |
|
$ 606.80 | ||||
| 17 | 704323 | Bezel, Switch | 1 |
|
- | ||||
| 18 | 704257 | End Cap (lt-blk) | 1 |
|
- | ||||
| 19 | 704258 | End Cap (rt-blk) | 1 |
|
- | ||||
| 20 | 703070 | Panel, Control | 1 |
|
- | ||||
| 21 | 702746 | Tie, Mount Cable | 1 |
|
- | ||||
| 22 | 705331 | Pad, Spacer | 1 |
|
- | ||||
| 23 | 704263 | Glass, Control Panel | 1 |
|
- | ||||
| 24 | 704250 | Extrusion, Bottom | 1 |
|
- | ||||
| 25 | 703082 | Thermostat, Lower Oven | 1 |
|
- | ||||
| 26 | 703078 | Switch, Selector (upper) | 1 |
|
- | ||||
| 27 | DE81-04412A | Wire, Pink (Replaces: 703090) | 1 |
|
$ 327.97 | ||||
| 27 | 703084 | Harness, Wire | 1 |
|
- | ||||
| 27 | 703086 | Harness, Wire | 1 |
|
- | ||||
| 27 | 703089 | Wire, Tan | 1 |
|
- | ||||
| 27 | 703267 | Wire, Resistor | 1 |
|
- | ||||
| 27 | DE81-09159A | Wire, Wire (Replaces: 703370) | 1 |
|
$ 313.88 | ||||
| 27 | Y703911 | Knob, Selector (blk) | 1 |
|
- |
