SELECT A DIAGRAM

Diagram for 01 - Blower/air Inlet & Water Level Float
01 - Blower/air Inlet & Water Level Float

Diagram for 02 - Control Panel (wu805)
02 - Control Panel (wu805)

Diagram for 03 - Door Assembly
03 - Door Assembly

Diagram for 04 - Front Panel & Access Panel
04 - Front Panel & Access Panel

Diagram for 05 - Installation Accessories
05 - Installation Accessories

Diagram for 06 - Installation Accessories
06 - Installation Accessories

Diagram for 07 - Pump & Motor Assembly
07 - Pump & Motor Assembly

Diagram for 08 - Racks
08 - Racks

Diagram for 09 - Rinse Dispenser Kit
09 - Rinse Dispenser Kit

Diagram for 10 - Tub
10 - Tub

Diagram for 11 - Tub Assembly Fastener Kits
11 - Tub Assembly Fastener Kits

Diagram for 12 - Tub Support (left)
12 - Tub Support (left)

Diagram for 13 - Tub Support (right)
13 - Tub Support (right)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 903039 Wire Harness 01 Appelez-nous -
1 902927 Wire Harness Appelez-nous -
2 912006 Washer Appelez-nous -
3 901434 Screw And Washer Assembly Appelez-nous -
4 WP489128 Screw, Ground Wire To Base--na   (Replaces: 210186) Special Order $ 9.79

5 902935 Transformer Appelez-nous -
6 902916 Relay Assembly Appelez-nous -
7 902938 Pcb & Mtg Plate Assy Appelez-nous -
8 910309 Washer Appelez-nous -
9 WP8281196 Screw   (Replaces: 912590) In-Stock Immediately $ 6.47

10 902923 Control Panel W/inserts Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

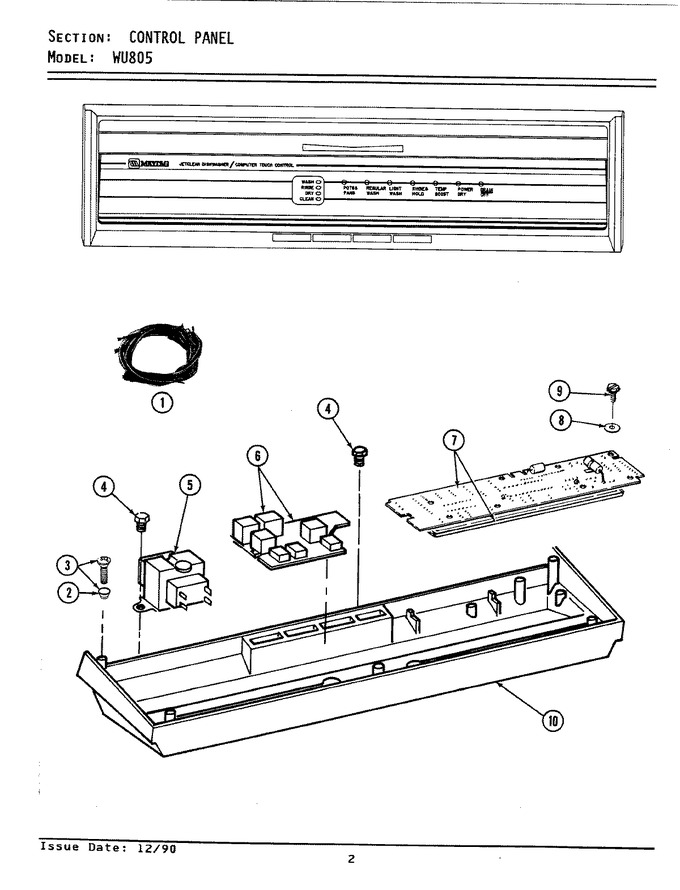

Diagram for WU805
