SELECT A DIAGRAM

01 - Blower/air Inlet & Water Level Float


02 - Control Panel (wu805)


03 - Door Assembly


04 - Front Panel & Access Panel


05 - Installation Accessories


06 - Installation Accessories


07 - Pump & Motor Assembly


08 - Racks


09 - Rinse Dispenser Kit


10 - Tub


11 - Tub Assembly Fastener Kits


12 - Tub Support (left)


13 - Tub Support (right)

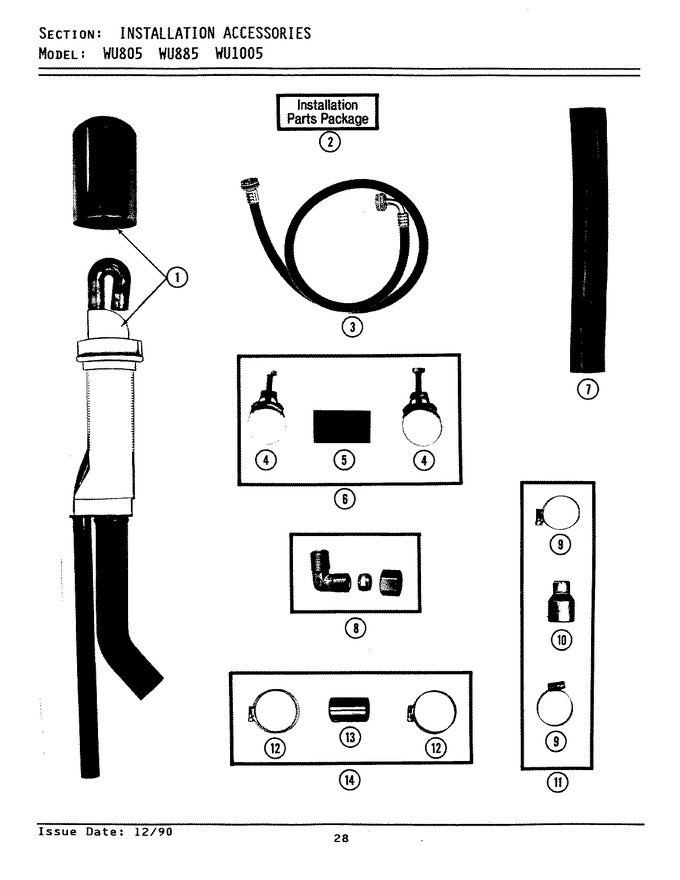

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	900317		Drain Air Gap		Appelez-nous	-
2	900900		Installation Parts Package		Appelez-nous	-
3	WP76314		Inlet Hose Assy.   (Replaces: 200672)				$ 38.79
3	WP76314		Inlet Hose, Hot 6 Ft.   (Replaces: 200688)				$ 38.79
3	3810FF		Inlet Hose, Hot 10 Ft.   (Replaces: 200681)			Immediately	$ 26.11
3	201486		Inlet Hose, Hot 8 Ft.		Appelez-nous	-
3	200757		Inlet Hose, Hot 4 Ft.		Appelez-nous	-
4	900042		Hose Clamp		Appelez-nous	-
5	910692		Rubber Coupling		Appelez-nous	-
6	900380		Drain Adapter Kit		Appelez-nous	-
7	910996		Drain Hose 7/8, Per Foot		Appelez-nous	-
7	910997		Ctn. 50 Ft, 7/8 Drain Hose				$ 156.96
8	900706		Compression Elbow Assembly		Appelez-nous	-
8	900456		Compression Elbow Assembly		Appelez-nous	-
9	WP285655		Hose Clamp - 1-1/4 Inch Max   (Replaces: 204680)			Immediately	$ 7.55
10	810158		Brass Adapter		Appelez-nous	-
11	800093		Drain Adapter Kit		Appelez-nous	-
12	WP616099		Hose Clamp - 1-3/4 Inch Max   (Replaces: 204681)			Immediately	$ 7.03
13	910995		Straight Connector		Appelez-nous	-
14	900686		Copper Coupler & Clamp Kit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
