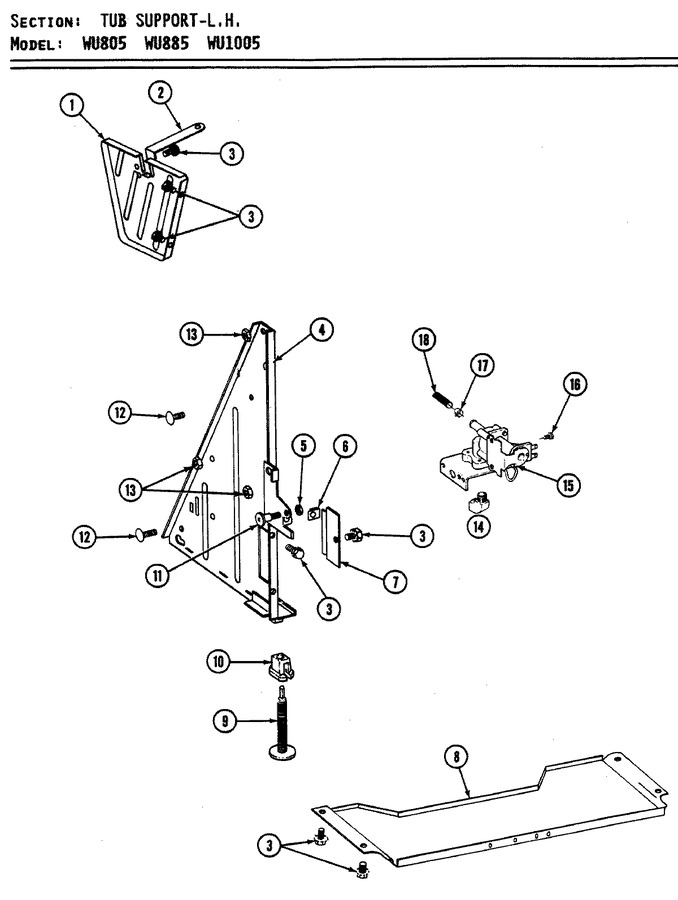

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	911957		Valve Side Enclosure-canada		Appelez-nous	-
2	911954		Bracket For Enclosure-canad		Appelez-nous	-
3	WP4312464		Screw   (Replaces: 912197)				$ 6.26
4	902769		Tub Support Assy Lh		Appelez-nous	-
5	WP3400029		Nut, Washered Lock   (Replaces: Y311426)			Immediately	$ 6.98
6	911765		U Type Fastener		Appelez-nous	-
7	911425		Spring Access Cover		Appelez-nous	-
8	911231		Base, Frame		Appelez-nous	-
9	WP233550		Leg, Adjustable   (Replaces: 910392)				$ 7.16
10	912447		Insert, Leg		Appelez-nous	-
11	910747		Hinge Pin		Appelez-nous	-
12	911917		Fastener, Insulation		Appelez-nous	-
13	Y052721		Nut				$ 21.38
14	901107		Street Elbow W/sealing Tape		Appelez-nous	-
15	902543		Water Valve				$ 88.06
16	Y310632		Screw		Appelez-nous	-
17	WP596669		Clamp, Spring   (Replaces: 911856)			Immediately	$ 7.56
18	911249		Injector Hose		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
