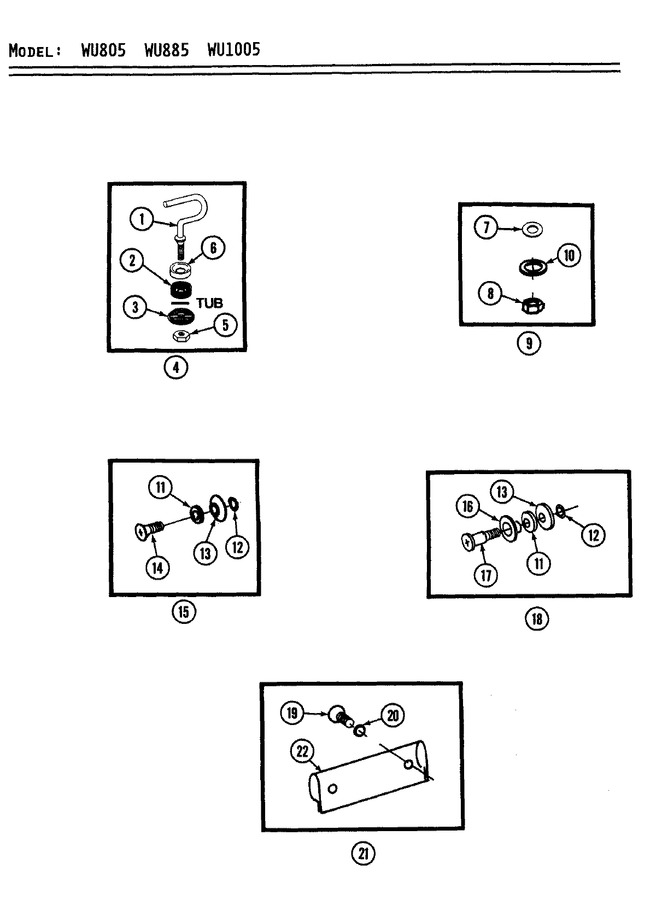

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	910033		Heater Hook		Appelez-nous	-
2	910031		Seal Washer		Appelez-nous	-
3	910090		Sealing Washer		Appelez-nous	-
4	900100		Heater Hook W/seals		Appelez-nous	-
5	M0282009		Hex. Nut----na   (Replaces: Y052679)				$ 12.06
6	910030		Washer		Appelez-nous	-
7	910054		Washer		Appelez-nous	-
8	910180		Jam Nut		Appelez-nous	-
9	900381		Heater Seal Kit		Appelez-nous	-
10	910603		Washer, Heating Element		Appelez-nous	-
11	911356		Washer		Appelez-nous	-
12	911461		Washer		Appelez-nous	-
13	Y911355		Cushion Washer		Appelez-nous	-
14	910175		Screw		Appelez-nous	-
15	901037		Bolt, Washer And Seal Assm.		Appelez-nous	-
16	910390		Roller		Appelez-nous	-
17	910053		Shaft, Rack Roller		Appelez-nous	-
18	901038		Shaft, Washer And Seal Assm		Appelez-nous	-
19	910604		Screw		Appelez-nous	-
20	910567		Washer		Appelez-nous	-
21	SC1002		Screws,washers & Shield Ass   (Replaces: 901303)			Immediately	$ 87.61
22	911621		Shield		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
