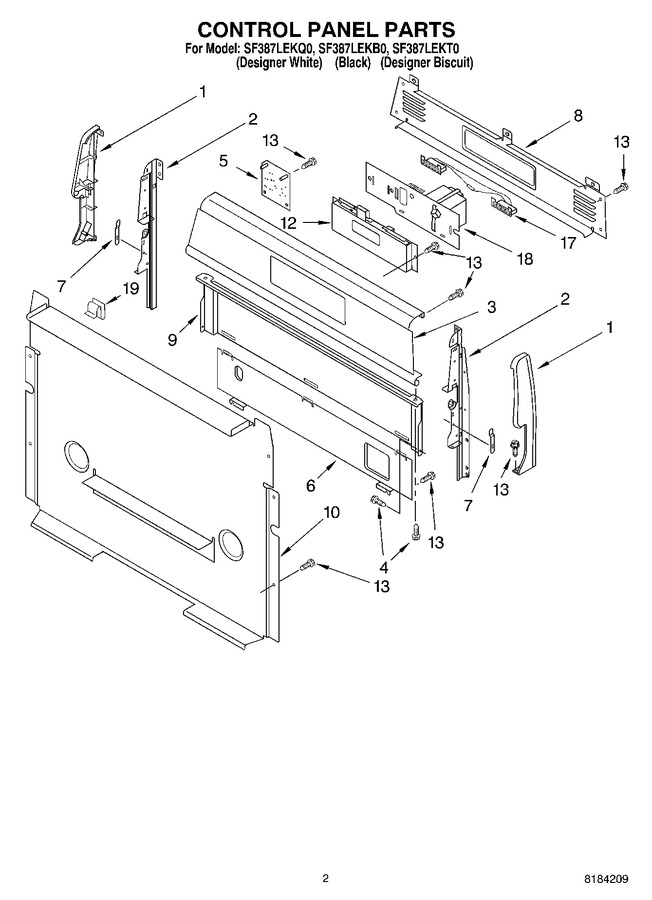

02 - Control Panel
03 - Manifold
04 - Chassis
05 - Drawer And Broiler
06 - Door, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3186188 | Endcap, Left Hand (black) |
|
- | |||||
| 1 | 3186190 | Endcap (left Hand White) |
|
- | |||||
| 1 | 8272507 | Endcap (left Hand-biscuit) |
|
- | |||||
| 1 | 3186189 | Endcap, Right Hand (black) |
|
- | |||||
| 1 | 3186191 | Endcap (right Hand White) |
|
- | |||||
| 1 | 8272508 | Endcap (right Hand-biscuit) |
|
- | |||||
| 2 | 3186198 | Support, Endcap (left Hand) |
|
- | |||||
| 2 | 3186199 | Support, Endcap (right Hand) |
|
- | |||||
| 3 | 8522679 | Panel, Control (biscuit) |
|
- | |||||
| 3 | 8522678 | Panel, Control (black) |
|
- | |||||
| 3 | 8522677 | Panel, Control (white) |
|
- | |||||
| 4 | W10276642 | Screw (Replaces: 4449746) |
|
$ 5.49 | |||||
| 5 | WPW10331686 | Module, Spark (Replaces: 8273977) |
|
Immediately | $ 354.47 | ||||
| 6 | 8053505 | Shield, Lower Heat |
|
$ 142.19 | |||||
| 7 | 3196200 | Clip, Spring (2) |
|
$ 8.96 | |||||
| 8 | 8272474 | Cover, Upper |
|
- | |||||
| 9 | 8053910 | Shield, Heat |
|
- | |||||
| 10 | 8273132 | Cover, Lower |
|
- | |||||
| 12 | 8522540 | Control, Range (biscuit) |
|
- | |||||
| 12 | 8522539 | Control, Range (white) |
|
- | |||||
| 12 | 8522538 | Control, Range (black) |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 17 | 8523000 | Jumper W/fuse |
|
- | |||||
| 18 | 9755076 | Power Supply, Pca |
|
- | |||||
| 19 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 10.85 |
