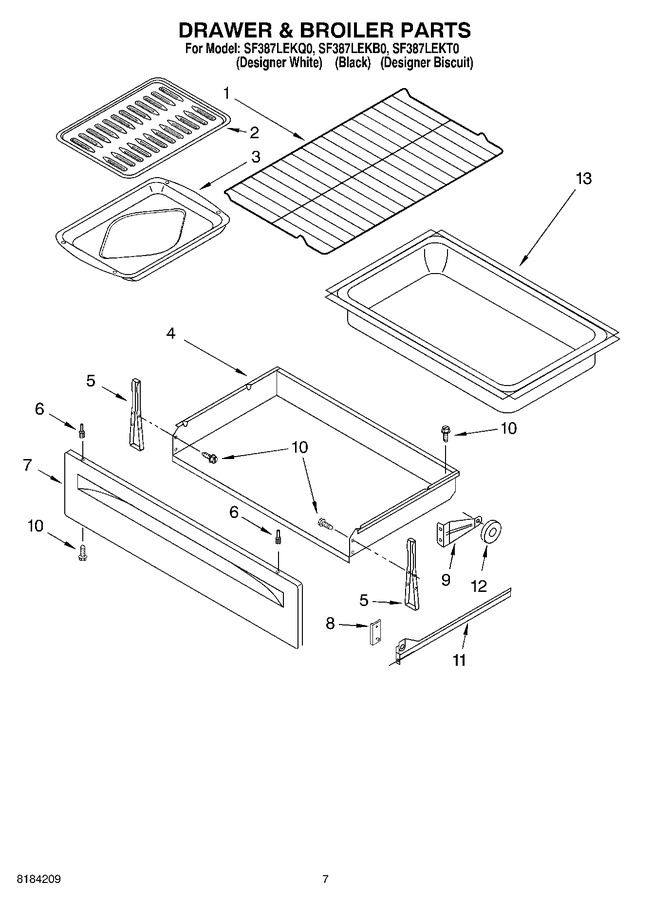

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Oven (2)   (Replaces: 3195710)			Immediately	$ 42.16
2	WP3195996		Grill, Broiler   (Replaces: 3195996)				$ 82.63
3	WP3196076		Pan, Broiler   (Replaces: 3196076)				$ 279.38
4	8053343		Drawer, Storage		Appelez-nous	-
5	W11759228		Bracket, Drawer (2)   (Replaces: 3196817)				$ 23.55
6	3196815		Rivet, Push (2) (almond)		Appelez-nous	-
6	WP3196813		Rivet, Push (2) (black)   (Replaces: 3196813)			Immediately	$ 9.60
6	WP3196814		Rivet, Push (2) (white)   (Replaces: 3196814)			Immediately	$ 9.49
7	W11230486		Panel, Drawer Front (white)   (Replaces: 8053336)				$ 181.28
7	W11230473		Panel, Drawer Front (biscuit)   (Replaces: 8272502)		Appelez-nous	-
7	W11230490		Panel, Drawer Front (black)   (Replaces: 8053338)				$ 181.36
8	8522669		Spacer, Glide		Appelez-nous	-
9	8054069		Bracket, Roller		Appelez-nous	-
10	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 6.98
11	8274190		Rail Assy, Drawer (left Side)		Appelez-nous	-
11	8274191		Rail Assy, Drawer (right Side)		Appelez-nous	-
12	814229		Roller   (Replaces: 422604)			Immediately	$ 51.23
13	8272528		Liner, Drawer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
