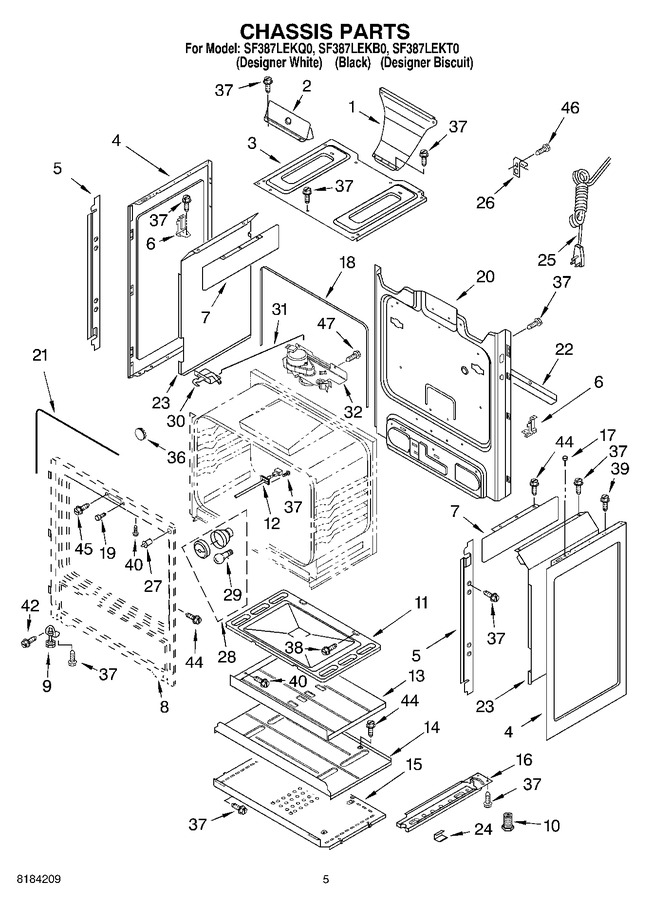

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11457094		Flue Box   (Replaces: 3195727)				$ 135.26
2	WP8272747		Shield, Flue   (Replaces: 8272747)				$ 63.86
3	W11379351		Burner Box   (Replaces: 8273036)				$ 55.02
4	W11730303		Panel, Side (2) (black-textured)   (Replaces: 8053832)			Immediately	$ 148.35
4	W10162246		Panel, Side (2) (biscuit-textured)   (Replaces: 8272519)				$ 176.49
4	WPW10575396		Panel, Side (2) (white-textured)   (Replaces: 8053830)				$ 133.84
5	3196137		Sheild, Heat (2)		Appelez-nous	-
6	3186405		Brkt, Manifold Mtg (left Hand)		Appelez-nous	-
6	3186406		Brkt, Manifold Mtg (right Hand)		Appelez-nous	-
7	3196136		Shield, Heat (2)		Appelez-nous	-
9	WP3196037		Foot, Front (2)   (Replaces: 3196037)				$ 74.67
10	WPW10058460		Foot, Rear (2)   (Replaces: 312701)			Immediately	$ 7.07
11	WP3195097		Bottom, Oven   (Replaces: 3195097)				$ 213.94
12	WPW10181986		Sensor, Oven   (Replaces: 8273902)			Immediately	$ 96.15
13	8053967		Baffle, Burner				$ 270.82
14	8053969		Shield, Heat				$ 96.89
15	8053968		Shield, Lower		Appelez-nous	-
16	W11818353		Rail, Base (2)   (Replaces: 8053335)				$ 53.71
17	238614		Bumper (2)   (Replaces: 3195809)				$ 72.68
18	3195737		Seal, Oven Flange		Appelez-nous	-
19	W10877054		Spacer, Door   (Replaces: 3196392)			Immediately	$ 48.05
20	8274179		Back, Main		Appelez-nous	-
21	W11542153		Seal, Oven Door   (Replaces: 8522416)			Immediately	$ 45.18
22	8053971		Brace, Main Back				$ 7.82
23	3196523		Retainer, Insul. (left Hand)		Appelez-nous	-
23	3195726		Retainer, Insul. (right Hand)		Appelez-nous	-
24	3196576		Clip, Panel (6)		Appelez-nous	-
25	W11582239		Cord, Power   (Replaces: 8054037)				$ 15.08
26	549193		Clamp, Cord   (Replaces: 3196256)				$ 12.05
27	WP3196262		Switch, Door   (Replaces: 3196262)				$ 141.83
28	W11594027		Light Socket Assy   (Replaces: 3196701)			Immediately	$ 78.31
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
30	WP9761013		Latch, Door   (Replaces: 3196119)				$ 219.74
31	W10078370		Rod, Latch   (Replaces: 3196960)				$ 81.63
32	WPW10107820		Latch-mtr   (Replaces: 3196953)				$ 265.33
36	3196439		Button, Plug		Appelez-nous	-
37	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
38	3196152		Screw				$ 8.99
39	3196167		Screw (almond)		Appelez-nous	-
39	WP3400832		Screw (black)   (Replaces: 3196168)			Immediately	$ 6.98
39	3196166		Screw (white)				$ 6.31
40	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
42	WP98008545		Screw   (Replaces: 3196179)				$ 15.94
44	WP7101P246-60		Screw   (Replaces: 3196177)				$ 6.98
45	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 6.98
46	W11244557		Screw   (Replaces: 3196173)				$ 12.25
47	W11688737		Insulation, Back   (Replaces: 8272614)				$ 105.20
47	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
47	WPW10208653		Insulation, Wrap   (Replaces: 8272616)			Immediately	$ 49.92
