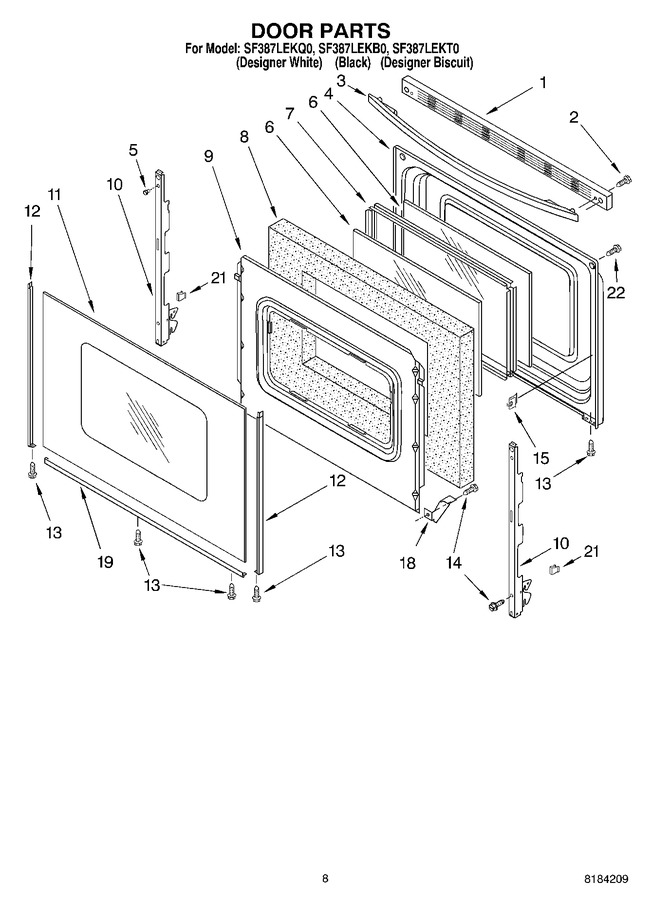

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8522433		Trim, Top (white)		Appelez-nous	-
1	3196819		Trim, Top (black)		Appelez-nous	-
1	8522434		Trim, Top (biscuit)		Appelez-nous	-
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 7.82
3	WPW10202217		Handle, Door (black)   (Replaces: 3195922)				$ 231.98
3	WPW10202216		Handle, Door (white)   (Replaces: 8522444)				$ 317.72
3	8522445		Handle, Door (biscuit)		Appelez-nous	-
4	3186292		Liner, Door		Appelez-nous	-
5	238614		Bumper (2)   (Replaces: 3195809)				$ 72.68
6	WP8053948		Glass, Inner (2)   (Replaces: 3186271)				$ 160.45
7	WPW10316950		Frame, Glass   (Replaces: 3186289)			Immediately	$ 76.37
8	WPW10278991		Insulation, Door   (Replaces: 8272618)			Immediately	$ 86.89
9	W11539580		Retainer, Insul.   (Replaces: 3186297)				$ 199.17
10	WP8053807		Hinge, Door   (Replaces: 8053807)				$ 81.73
11	WP8053834		Glass, Outer Door (white)   (Replaces: 8053480)				$ 250.16
11	8272498		Glass, Outer Door (biscuit)		Appelez-nous	-
11	WPW10118455		Glass, Outer Door (black)   (Replaces: 8053478)			Immediately	$ 285.17
12	8184860		Trim, Door Side (right Hand-biscuit)   (Replaces: 8522437)				$ 129.91
12	8184858		Trim, Door Side (right Hand-black)   (Replaces: 3195973)				$ 144.73
12	8184858		Trim, Door Side Left Hand (black)   (Replaces: 3195976)				$ 144.73
12	8184859		Trim, Door Side (right Hand-white)   (Replaces: 8522436)				$ 146.49
12	8184860		Trim, Door Side (left Hand-biscuit)   (Replaces: 8522440)				$ 129.91
12	8184859		Trim, Door Side (left Hand-white)   (Replaces: 8522439)				$ 146.49
13	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
14	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.47
15	3196025		Clip, Door Glass				$ 20.10
18	3196794		Bracket, Window (2)				$ 24.34
19	8184858		Trim, Bottom (black)   (Replaces: 3195424)				$ 144.73
19	8184859		Trim, Bottom (white)   (Replaces: 3195422)				$ 146.49
19	8184860		Trim, Bottom (biscuit)   (Replaces: 8272499)				$ 129.91
21	3196925		Clip, Door Stop				$ 9.06
22	814381		Pin Kit-dr Removal				$ 7.73
22	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
22	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
22	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
22	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
22	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
22	8273888A		Anti-tip Kit   (Replaces: 3176830)				$ 27.96
22	8522613		Harness, Main (pyro)		Appelez-nous	-
22	8273901		Harness, Bake & Broil Ignitor				$ 69.23
22	8274195		Harness, Electrode		Appelez-nous	-
22	3400964		Clip, Wire   (Replaces: 3196520)				$ 76.28
22	8053527		Clip, Wire		Appelez-nous	-
22	3196896		Clip-wire		Appelez-nous	-
22	3196696		Clip, Harness		Appelez-nous	-
22	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
22	WP179051		Screw   (Replaces: 3196161)			Immediately	$ 7.16
22	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
22	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
22	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
22	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
22	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
22	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
22	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
22	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
22	242831		Wire (14 Ga. 200 C Red)				$ 342.23
22	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
22	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
22	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
22	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
22	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 74.76
22	261582		Grease		Appelez-nous	-
22	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
22	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
22	4392899		Biscuit			Immediately	$ 23.81
22	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
22	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
22	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
22	350942		Primer (white)   (Replaces: 206922)				$ 80.69
22	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
22	978883		Almond (uncut)		Appelez-nous	-
22	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
22	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
