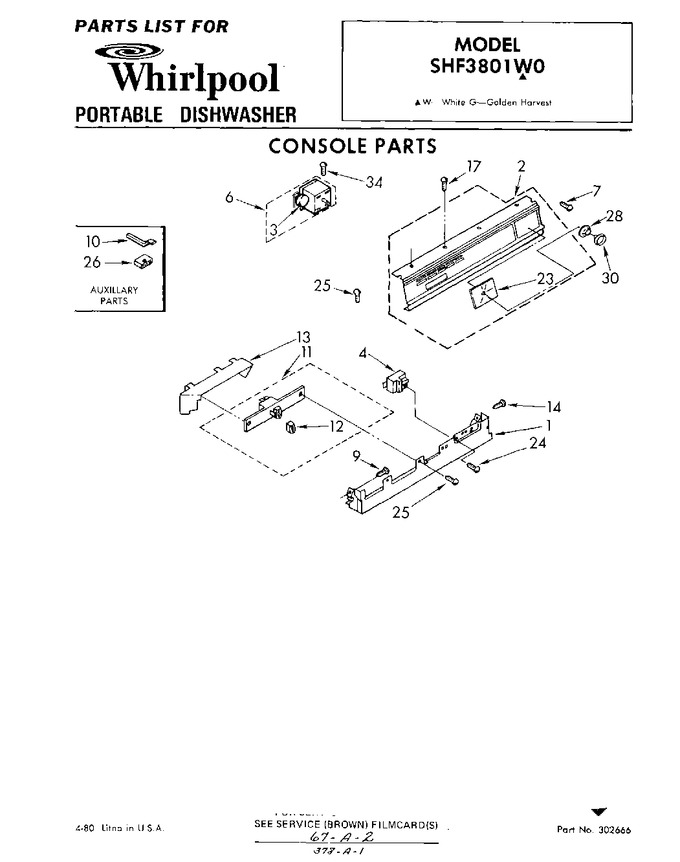

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300752		Bracket, Control		Appelez-nous	-
2	301637		Console Assembly		Appelez-nous	-
3	301062		Motor, Timer		Appelez-nous	-
4	300516		Relay, Start (alternate)		Appelez-nous	-
4	301536		Relay, Start (alternate)		Appelez-nous	-
4	301620		Relay, Start (alternate)		Appelez-nous	-
6	302581		Timer, Disconnect		Appelez-nous	-
7	WP487353		Screw, 6-20 X .38   (Replaces: 301502)				$ 6.81
9	WP488627		Screw, 8-18 X 1/2   (Replaces: 300128)				$ 6.81
10	302162		Retainer, Harness		Appelez-nous	-
11	302099		Switch, Pushbutton		Appelez-nous	-
12	301977		Button (2)		Appelez-nous	-
13	300242		Barrier, Pushbutton Switch		Appelez-nous	-
14	WP488787		Screw, 8-18 X 1/2 (2)   (Replaces: 9418000)				$ 9.52
17	162400		Screw		Appelez-nous	-
23	302139		Insert		Appelez-nous	-
24	339494		Screw		Appelez-nous	-
25	WP489128		Screw,   (Replaces: 98209)				$ 9.79
26	719585		Connector, Terminal (motor)		Appelez-nous	-
28	300996		Dial		Appelez-nous	-
30	301010		Knob, Timer		Appelez-nous	-
34	WP356418		Screw   (Replaces: 96435)				$ 7.13
