SELECT A DIAGRAM

01 - Console


02 - Cabinet

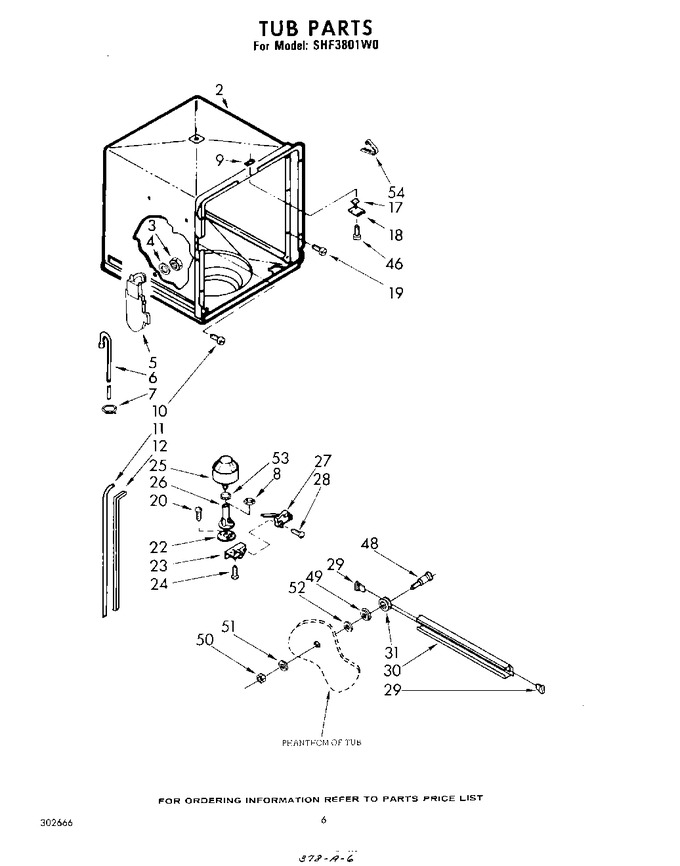

03 - Door


04 - Tub , Lit/optional


05 - Dishrack


06 - Pump And Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	302095		Tub Assembly		Appelez-nous	-
3	713799		Nut, 7/8-16		Appelez-nous	-
4	713878		Gasket		Appelez-nous	-
5	300974		Inlet, Water		Appelez-nous	-
6	301053		Hose, Inlet		Appelez-nous	-
7	WP596669		Clamp, Hose   (Replaces: 301958)			Immediately	$ 7.56
8	717488		Nut, .125				$ 12.83
9	719455		Nut, Twin Spring		Appelez-nous	-
10	719266		Screw, 8-18 X 5/8		Appelez-nous	-
11	302090		Gasket (alternate)		Appelez-nous	-
11	302092		Gasket (alternate)		Appelez-nous	-
11	302091		Gasket (alternate)		Appelez-nous	-
12	302094		Retainer (l.h.)		Appelez-nous	-
12	302093		Retainer (r.h.)		Appelez-nous	-
17	712302		Shim		Appelez-nous	-
18	300233		Strike		Appelez-nous	-
19	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
20	WP488729		Screw, 8-18 X .50   (Replaces: 717236)			Immediately	$ 7.01
22	719966		Gasket		Appelez-nous	-
23	719342		Bracket, Overflow		Appelez-nous	-
24	718250		Screw, 8 X 1/2 (3)		Appelez-nous	-
25	718035		Float		Appelez-nous	-
26	719967		Standpipe, Overflow		Appelez-nous	-
27	301671		Switch, Pressure (alternate)		Appelez-nous	-
27	301672		Switch, Pressure (alternate)		Appelez-nous	-
28	98086		Screw, 4-40 X 3/4		Appelez-nous	-
29	300845		End Cap, Track (4)				$ 7.63
30	300846		Track (2)		Appelez-nous	-
31	300844		Wheel Assembly		Appelez-nous	-
46	WP308685		Screw, 10-12 X 1/2   (Replaces: 455524)			Immediately	$ 7.08
48	712499		Screw, Shoulder		Appelez-nous	-
49	718817		Washer, Cup		Appelez-nous	-
50	718829		Locknut		Appelez-nous	-
51	717624		Washer		Appelez-nous	-
52	718750		Washer		Appelez-nous	-
53	301662		Gasket		Appelez-nous	-
54	302666		List, Parts		Appelez-nous	-
54	301233		Instructions, Installation		Appelez-nous	-
54	302752		Tag, Energy Fact		Appelez-nous	-
54	302629		Guide, Use & Care		Appelez-nous	-
54	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
54	301663		Clip		Appelez-nous	-
54	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
54	350930		White   (Replaces: 799343)			Immediately	$ 34.39
54	261890		Golden Harvest		Appelez-nous	-
54	350942		Primer (white)   (Replaces: 206922)				$ 80.69
54	206925		Leveler (thinner) (2oz.)		Appelez-nous	-
54	799351		Thinner (1 Gal.)		Appelez-nous	-
54	799640		Kit, Epoxy Patch (white)		Appelez-nous	-
54	302345		Harness, Wiring		Appelez-nous	-
	261891		Xgolden Harvest (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46

    View Diagram in Separate Window       Print Part List
