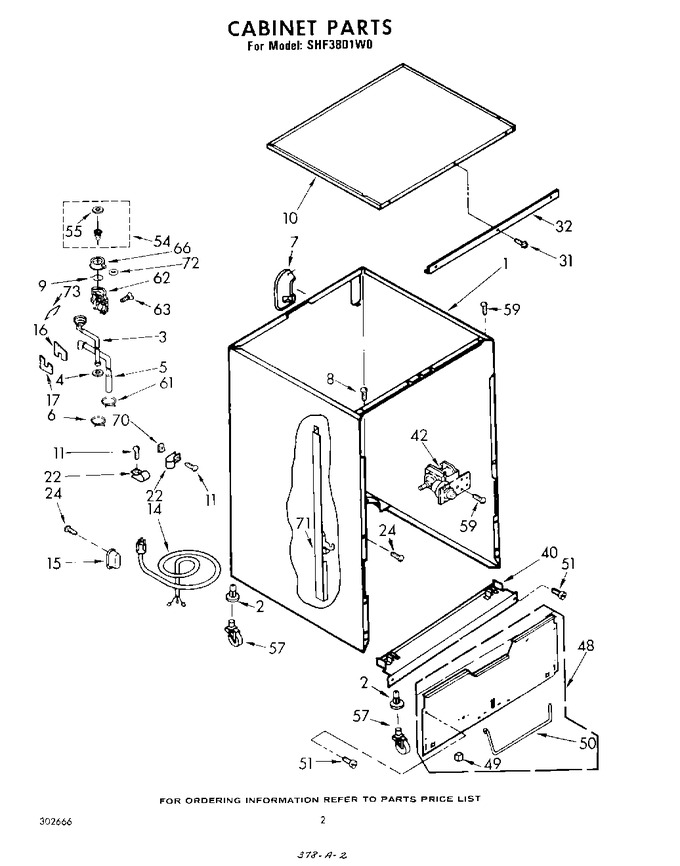

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	719614		Shell Assembly (white)		Appelez-nous	-
1	301736		Shell Assembly (golden Harvest)		Appelez-nous	-
2	300450		Socket, Caster (alternate)		Appelez-nous	-
2	717588		Socket, Caster (alternate)		Appelez-nous	-
3	718056		Coupler Assembly		Appelez-nous	-
4	WP16123		Washer   (Replaces: 16123)				$ 6.93
5	300275		Hose, Drain		Appelez-nous	-
6	WPW10144763		Clip, Strap   (Replaces: 596490)				$ 6.80
7	718030		Housing, Hose		Appelez-nous	-
8	WP487353		Screw, 6-20 X 1/2   (Replaces: 301063)				$ 6.81
9	717958		Spring, Coupler		Appelez-nous	-
10	301563		Top, Vinyl Clad		Appelez-nous	-
11	WP489128		Screw   (Replaces: 717232)				$ 9.79
14	302325		Cord, Power		Appelez-nous	-
15	716234		Housing, Cord		Appelez-nous	-
16	300273		Flow Divider, Upper		Appelez-nous	-
17	300274		Flow Divider, Lower		Appelez-nous	-
22	596553		Clamp, Cable		Appelez-nous	-
24	WP488787		Screw, 8-18 X 1/2   (Replaces: 9418000)				$ 9.52
31	343826		Screw (2)		Appelez-nous	-
32	301585		Trim, Front		Appelez-nous	-
40	719513		Toeplate Assembly (includes Illus. 2)		Appelez-nous	-
42	719495		Valve, Water Inlet		Appelez-nous	-
48	719091		Plate, Cover				$ 1,740.16
49	719235		Bumper, Rubber		Appelez-nous	-
50	719093		Bar, Torsion (r.h.)		Appelez-nous	-
50	719094		Bar, Torsion (l.h.)				$ 1,874.92
51	WP90767		Screw, Tapping   (Replaces: 300890)			Immediately	$ 7.04
54	WPW10254672		Kit, Faucet Adapter   (Replaces: 300446)			Immediately	$ 49.54
55	300445		Washer		Appelez-nous	-
57	300424		Caster (4) (use W/300450 Socket)		Appelez-nous	-
57	718534		Caster (4) (use W/717588 Socket)		Appelez-nous	-
59	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
61	719953		Clamp, Hose		Appelez-nous	-
62	717942		Cover, L.h.		Appelez-nous	-
62	717941		Cover, R.h.		Appelez-nous	-
63	718032		Screw, 8-18 X 3/4 (3)		Appelez-nous	-
66	717939		Latch, Cap		Appelez-nous	-
70	717337		Nut, J-type		Appelez-nous	-
71	719621		Leg Assembly, L.h.		Appelez-nous	-
71	719622		Leg Assembly, R.h.		Appelez-nous	-
72	718738		``o`` Ring		Appelez-nous	-
73	718073		Coupler, Pull Ring		Appelez-nous	-
