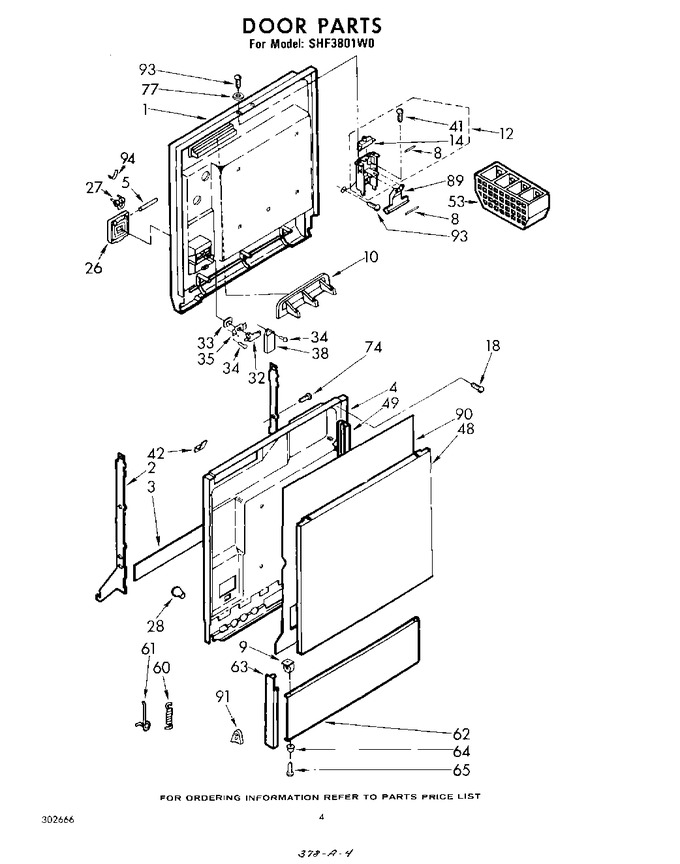

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 302033 | Door, Inner (includes Illus. 4) |
|
- | |||||
| 2 | 300225 | Support, Door (l.h.) |
|
- | |||||
| 2 | 300226 | Support, Door (r.h.) |
|
- | |||||
| 3 | 717921 | Gasket, Door |
|
- | |||||
| 4 | 302031 | Liner, Door |
|
- | |||||
| 5 | 4387043 | Pin, Lid Hinge (Replaces: 300115) |
|
$ 42.50 | |||||
| 8 | 300234 | Pin, Pivot |
|
- | |||||
| 9 | 356592 | Grommet |
|
- | |||||
| 10 | 300246 | Screen, Vent |
|
- | |||||
| 12 | 300235 | Latch Assembly |
|
- | |||||
| 14 | 16600 | Switch, Interlock (Replaces: 300232) |
|
$ 6.18 | |||||
| 18 | WP488729 | Screw, 8 X 1/2 (Replaces: 301458) |
|
Immediately | $ 7.01 | ||||
| 26 | 4387043 | Lid, Detergent Dispenser Assembly (Replaces: 300155) |
|
$ 42.50 | |||||
| 27 | WP8066018 | Spring, Lid (Replaces: 300106) |
|
Immediately | $ 7.15 | ||||
| 28 | 715779 | Bumper |
|
- | |||||
| 32 | 300119 | Lever, Catch |
|
- | |||||
| 33 | 300105 | Seal, Lever |
|
$ 5.70 | |||||
| 34 | 718250 | Screw, 8 X 1/2 |
|
- | |||||
| 35 | 300104 | Retainer |
|
- | |||||
| 38 | 300109 | Actuator |
|
- | |||||
| 41 | 301582 | Screw, 6-32 X 1 |
|
- | |||||
| 42 | 718533 | Clip, Ground |
|
- | |||||
| 48 | N/A | Panel, Front |
|
- | |||||
| 49 | 301020 | Trim, Door (r.h.) |
|
- | |||||
| 49 | 301019 | Trim, Door (l.h.) |
|
$ 0.17 | |||||
| 53 | WP8539066 | Basket, Silverware (Replaces: 302046) |
|
$ 91.31 | |||||
| 60 | 716425 | Spring, Door |
|
- | |||||
| 61 | 716401 | Retainer, Spring |
|
$ 35.28 | |||||
| 62 | N/A | Panel, Access |
|
- | |||||
| 63 | 302622 | Cap, End (l.h.) |
|
- | |||||
| 63 | 302621 | Cap, End (r.h.) |
|
- | |||||
| 64 | 719581 | Foot |
|
- | |||||
| 65 | 719266 | Screw, 8-18 X 5/8 |
|
- | |||||
| 74 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 300128) |
|
$ 6.81 | |||||
| 77 | 300237 | Washer |
|
- | |||||
| 89 | 300230 | Lever, Release |
|
- | |||||
| 90 | 300801 | Spacer |
|
- | |||||
| 91 | 301596 | Retainer |
|
- | |||||
| 93 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 94 | 301857 | Clip, Wire |
|
- |
