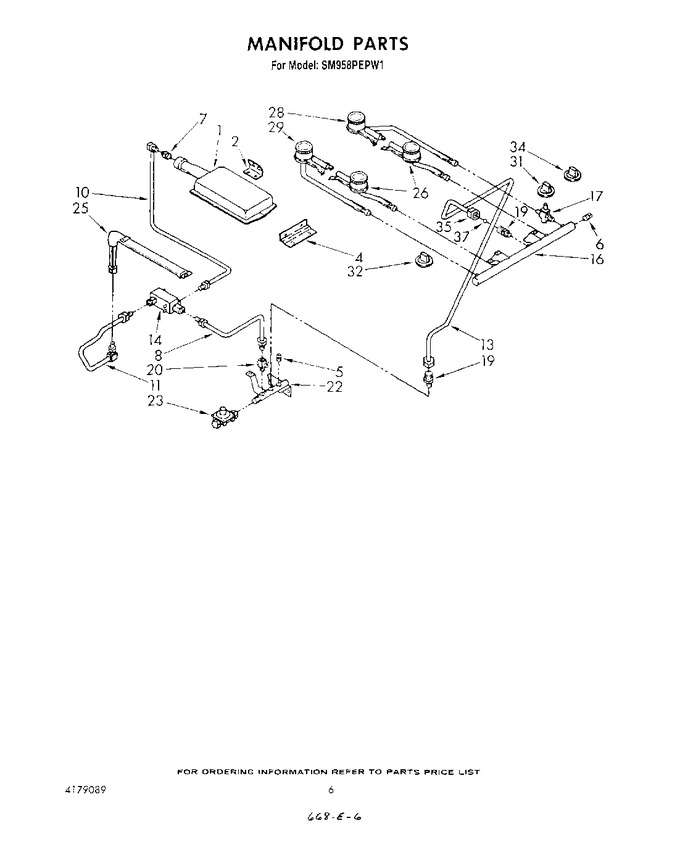

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786307		Burner, Ultra Ray Broiler		Appelez-nous	-
2	786543		Bracket, Ignitor		Appelez-nous	-
4	786544		Bracket, Burner Mounting		Appelez-nous	-
5	W10295523		Pipe Plug, 1/8 Npt   (Replaces: 786545)		Appelez-nous	-
6	786665		Pipe Plug, 3/8 Npt		Appelez-nous	-
7	786308		Spud, Orifice (natural Gas No. 50)		Appelez-nous	-
7	786309		Spud, Orifice (lp Gas No. 58)		Appelez-nous	-
8	786547		Tubing (inlet To Gas Valve)		Appelez-nous	-
10	786548		Orifice & Tubing Assembly (gas Valve To Ultra Ray Burner)		Appelez-nous	-
11	786549		Hood & Tubing Assembly (gas Valve To Lower Oven Burner)		Appelez-nous	-
13	786550		Tubing (inlet To Manifold)		Appelez-nous	-
14	786310		Valve, Dual Gas Valve		Appelez-nous	-
16	786554		Manifold		Appelez-nous	-
17	786311		Valve, Top Burner (tri-set) (4)		Appelez-nous	-
19	786556		Fitting (2)		Appelez-nous	-
20	786312		Valve, Shut-off		Appelez-nous	-
22	786557		Inlet, Gas		Appelez-nous	-
23	786313		Regulator, Pressure		Appelez-nous	-
25	786314		Oven Burner, Lower		Appelez-nous	-
26	786315		Top Burner, Front (2)		Appelez-nous	-
28	786316		Top Burner, R.r.		Appelez-nous	-
29	786317		Top Burner, L.r.		Appelez-nous	-
31	786559		Knob, Top Burner (4)		Appelez-nous	-
32	786663		Knob, Oven Control		Appelez-nous	-
34	786664		Knob, Selector		Appelez-nous	-
35	786565		Nut, Compression 3/8		Appelez-nous	-
37	786566		Sleeve, Compression 3/8		Appelez-nous	-
