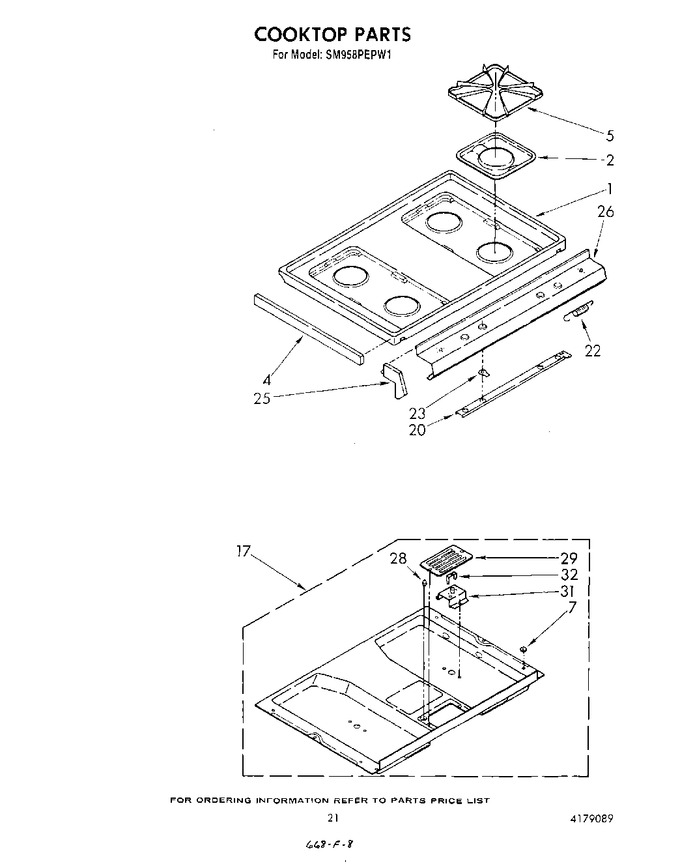

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786332		Top, Main (white)		Appelez-nous	-
1	786331		Top, Main (almond)		Appelez-nous	-
1	786596		Top, Main (platinum)		Appelez-nous	-
1	786595		Top, Main (toast)		Appelez-nous	-
2	WP786333		Bowl, Chrome (4)   (Replaces: 786333)				$ 16.83
4	786343		Trim, Main Top (right Side)		Appelez-nous	-
4	786344		Trim, Main Top (left Side)		Appelez-nous	-
5	786354		Grate, Top Burner (4)		Appelez-nous	-
7	786342		Spacer, Nylon (4)		Appelez-nous	-
17	786383		Burner Box		Appelez-nous	-
20	786390		Actuator, Spark Ignitor		Appelez-nous	-
22	786391		Spring		Appelez-nous	-
23	786392		Cam (4)		Appelez-nous	-
25	786394		End Cap (left)		Appelez-nous	-
25	786393		End Cap (right)		Appelez-nous	-
26	786395		Panel, Control		Appelez-nous	-
28	786682		Spud, Orfice		Appelez-nous	-
29	786683		Plate, Cover		Appelez-nous	-
31	786684		Bracket, Top (2)		Appelez-nous	-
32	786754		Bracket, Electrode		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
