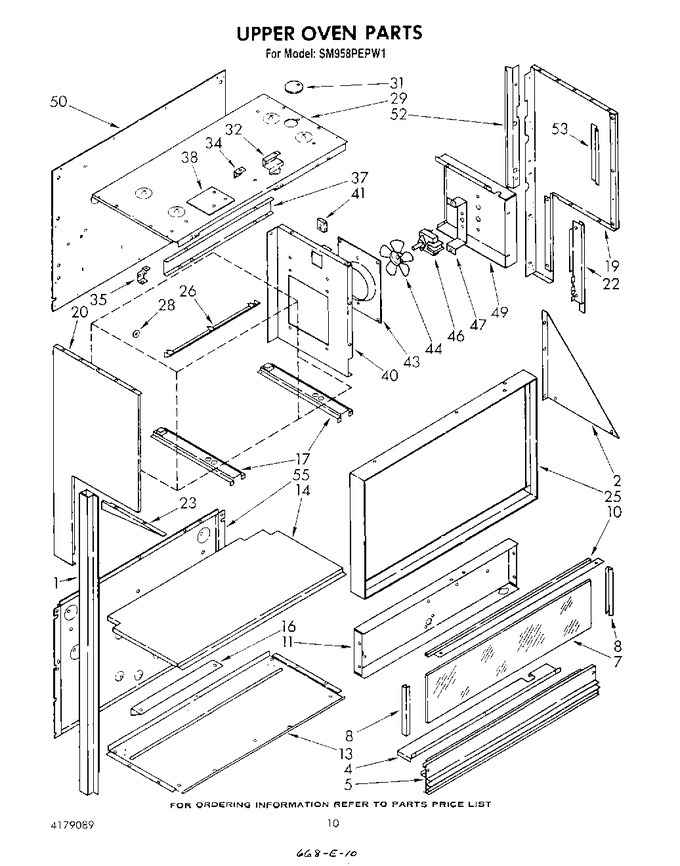

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786606		Support, Upper Oven (r.h.)		Appelez-nous	-
1	786607		Support, Upper Oven (l.h.)		Appelez-nous	-
2	786609		Brace, Shelf (l.h.)		Appelez-nous	-
2	786608		Brace, Shelf (r.h.)		Appelez-nous	-
4	786499		Shield, Heat		Appelez-nous	-
5	786610		Trim, Lower		Appelez-nous	-
7	786611		Glass, Splashplate		Appelez-nous	-
8	786489		Trim, Glass		Appelez-nous	-
10	786612		Trim, Rear		Appelez-nous	-
11	786460		Panel, Surface Light		Appelez-nous	-
13	786613		Panel, Bottom		Appelez-nous	-
14	786614		Shelf, Upper Oven		Appelez-nous	-
16	786615		Bracket, Module Shelf		Appelez-nous	-
17	786616		Bracket, Shelf Runner		Appelez-nous	-
19	786619		Panel, Side (r.h.) (platinum)		Appelez-nous	-
19	786618		Panel, Side (r.h.) (almond)		Appelez-nous	-
19	786617		Panel, Side (r.h.) (white)		Appelez-nous	-
19	786620		Panel, Side (r.h.) (toast)		Appelez-nous	-
20	786622		Panel, Side (l.h.) (almond)		Appelez-nous	-
20	786624		Panel, Side (l.h.) (toast)		Appelez-nous	-
20	786621		Panel, Side (l.h.) (white)		Appelez-nous	-
20	786623		Panel, Side (l.h.) (platinum)		Appelez-nous	-
22	786625		Trim Support, Lower (r.h.)		Appelez-nous	-
22	786626		Trim Support, Lower (l.h.)		Appelez-nous	-
23	786627		Trim Strip, Side (r.h.)		Appelez-nous	-
23	786628		Trim Strip, Side (l.h.)		Appelez-nous	-
25	786629		Frame, Outer		Appelez-nous	-
26	786630		Deflector		Appelez-nous	-
28	WP90296		Clip   (Replaces: 786631)				$ 7.07
29	786632		Panel, Top		Appelez-nous	-
31	786633		Cover, Plate		Appelez-nous	-
32	786634		Bracket, Control Panel Mounting		Appelez-nous	-
34	786635		Bracket, Frame Mounting		Appelez-nous	-
35	786636		Bracket, Chassis Mounting		Appelez-nous	-
37	786637		Deflector, Air		Appelez-nous	-
38	786638		Shield		Appelez-nous	-
40	786639		Housing, Fan		Appelez-nous	-
41	786640		Connector, 3- Circuit		Appelez-nous	-
43	786641		Plate, Fan Mounting		Appelez-nous	-
44	786642		Blade, Fan		Appelez-nous	-
46	786643		Motor, Fan		Appelez-nous	-
47	786644		Bracket, Motor Mounting		Appelez-nous	-
49	786645		Cover, Fan		Appelez-nous	-
50	786646		Panel, Cover		Appelez-nous	-
52	786648		Spacer, Wall (l.h.)		Appelez-nous	-
52	786647		Spacer, Wall (r.h.)		Appelez-nous	-
53	786649		Bracket, Side		Appelez-nous	-
55	786455		Panel, Cover		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
