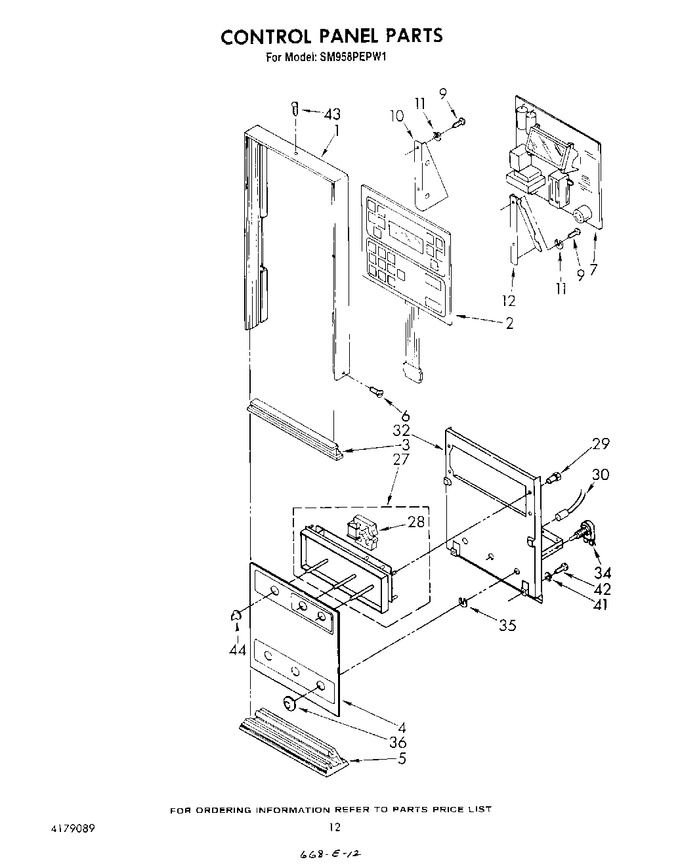

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	312602		Frame, Control Panel		Appelez-nous	-
2	313100		Membrane, Switch		Appelez-nous	-
3	312743		Splice Panel		Appelez-nous	-
4	308297		Seal, Foam		Appelez-nous	-
4	313510		Glass, Control Panel		Appelez-nous	-
5	312603		Bottom Cap, Control Panel		Appelez-nous	-
6	348689		Screw, No. 8 (2)				$ 66.92
7	61533		Board, Power Control		Appelez-nous	-
9	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 6.84
10	313098		Bracket, P.c. Board		Appelez-nous	-
11	138473		Lockwasher		Appelez-nous	-
12	313099		Bracket, P.c. Board		Appelez-nous	-
27	313573		Timer, Auto (includes Illus. 28)		Appelez-nous	-
28	308443		Motor, Timer		Appelez-nous	-
29	309645		Nut, Aluminum (4)		Appelez-nous	-
30	311547		Indicator Light		Appelez-nous	-
32	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.07
32	329791		Bracket, Control Mounting		Appelez-nous	-
34	313529		Switch, Oven Light (2)		Appelez-nous	-
35	312796		Lockwasher (2)		Appelez-nous	-
36	313030		Bezel, Switch (2)		Appelez-nous	-
36	WP965173		Screw, 8a X 3/8 (3)   (Replaces: 246132)			Immediately	$ 9.65
36	WP308605		Strain Relief   (Replaces: 308603)				$ 10.08
41	138473		Lockwasher		Appelez-nous	-
42	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 6.84
43	312248		Screw		Appelez-nous	-
44	330206		Knob, Timer (3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
