Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4157000 Panel, Side (2) (white) Appelez-nous -
1 4157130 Panel, Side (2) (almond) Appelez-nous -
1 WP308685 Panel, Side (2) (screw, 10-12 X 1/2 (10))   (Replaces: 4157111) In-Stock Immediately $ 7.08

2 WP308685 Screw, 10-12 X 1/2 (6)   (Replaces: 4157111) In-Stock Immediately $ 7.08

2 4157002 Frame, Front Appelez-nous -
3 4157005 Rail, Base (2) Appelez-nous -
4 4157006 Base, Front Appelez-nous -
4 4157122 Screw, 10-12 X 1/2 (4) Appelez-nous -
5 4157123 Screw, 10-32 X 1/2 Appelez-nous -
5 4314932 Support, Main (2) Appelez-nous -
5 WP308685 Screw, 10-12 X 1/2 (12)   (Replaces: 4157111) In-Stock Immediately $ 7.08

6 WP308685 Screw, 10-12 X 1/2 (6)   (Replaces: 4157111) In-Stock Immediately $ 7.08

6 WP681414 Screw, 10-12 X 1/2 (4)   (Replaces: 4157114) In-Stock Immediately $ 7.07

6 4179361 Support, Rear (2) Appelez-nous -
7 4179364 Cover, Wire Appelez-nous -
7 4157121 Screw, 10-12 X 3/8 (2) Appelez-nous -
8 4157014 Flue, Box Appelez-nous -
8 WP681414 Screw, 10-12 X 1/2 (3)   (Replaces: 4157114) In-Stock Immediately $ 7.07

9 4157015 Panel, Rear Appelez-nous -
9 WP308685 Screw, 10-12 X 1/2 (5)   (Replaces: 4157111) In-Stock Immediately $ 7.08

10 4157017 Burner Box Appelez-nous -
10 WP308685 Screw, 10-12 X 1/2 (3)   (Replaces: 4157111) In-Stock Immediately $ 7.08

12 4157023 Hinge. Door (2) Appelez-nous -
12 4157124 Screw, 10-24 X 3/8 (2) Appelez-nous -
12 WP308685 Screw, 10-12 X 1/2 (2)   (Replaces: 4157117) In-Stock Immediately $ 7.08

13 4157948 Seal, Door (2) (side) Appelez-nous -
14 4157025 Seal, Door (top) Appelez-nous -
15 4157027 Bumper, Cooktop (2) Appelez-nous -
20 4157325 Shield, Insulation Appelez-nous -
21 4157161 Leg, Leveler (4) Appelez-nous -
22 4157332 Nut (4) Appelez-nous -
23 4157132 Safe Edge Appelez-nous -
24 4314933 Stud, Locator Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

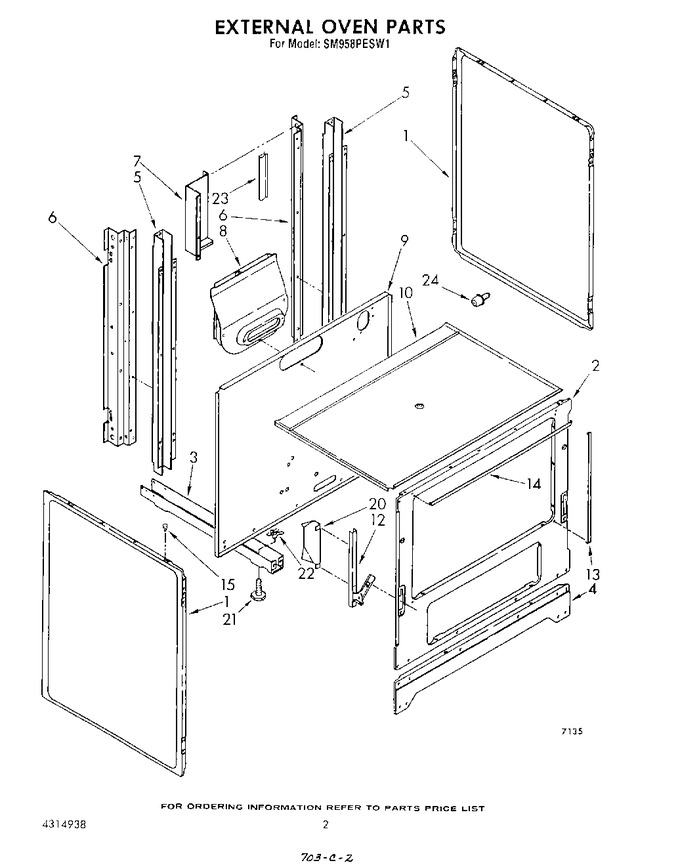

Diagram for SM958PESW1
