Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 313456 Rivet (3) Appelez-nous -
2 313639 Shelf, Cavity (install W/silastic No. 482338) Appelez-nous -
4 313614 Trim, Shelf (front) Appelez-nous -
5 313615 Trim, Shelf (rear) Appelez-nous -
10 330514 Socket, Complete Appelez-nous -
11 WP3395618 Bulb   (Replaces: 313969) In-Stock Immediately $ 71.33

13 312713 Screw, 8-32 X 3/8 (2) Appelez-nous -
17 313753 Seal, Foam Appelez-nous -
21 3147602 Seal, Foam Appelez-nous -
22 313663 Rack, Wire Appelez-nous -
23 WP3149478 Support Rack   (Replaces: 313653) Special Order $ 8.64


    View Diagram in Separate Window     Print Icon   Print Part List

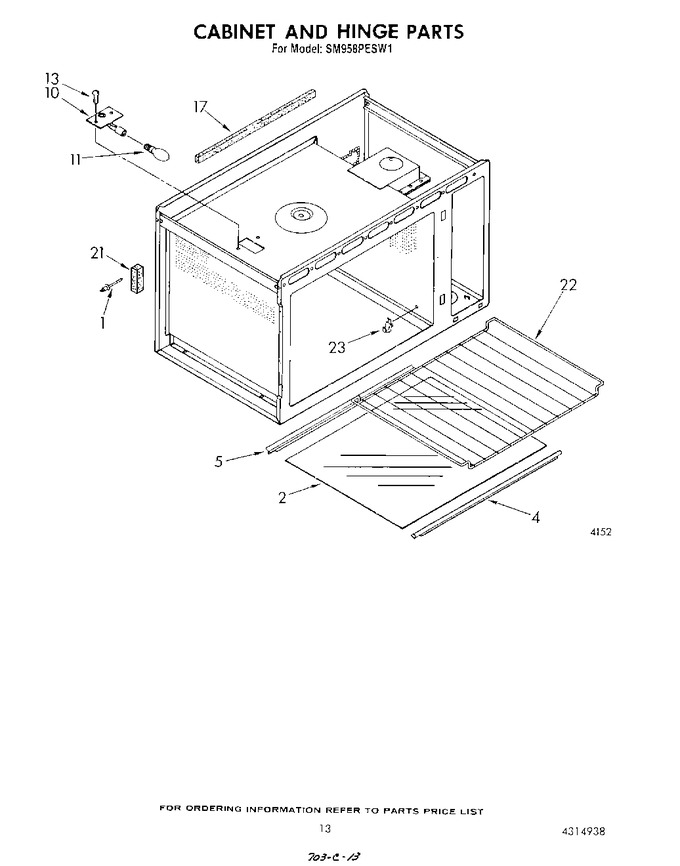

Diagram for SM958PESW1
