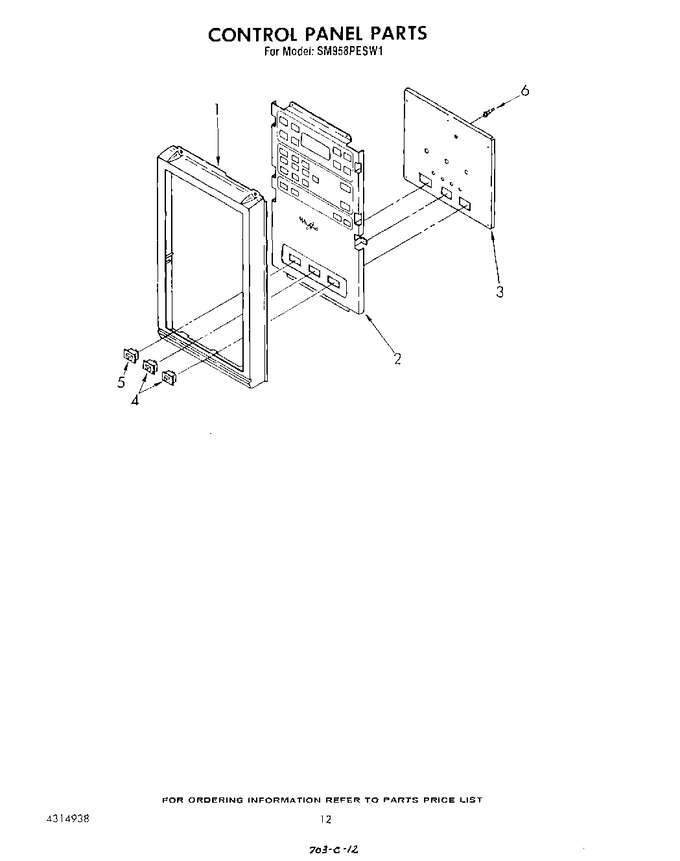

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148090		Frame, Control Panel		Appelez-nous	-
2	3147197		Switch Membrane (control Module) (alt.)		Appelez-nous	-
2	3148274		Switch Membrane (control Module) (alt.)		Appelez-nous	-
3	3147283		Bracket, Control (mounting)		Appelez-nous	-
3	313818		Screw, 8-32 X 3/16 (4)		Appelez-nous	-
4	WP4314961		Switch, Rocker (2)   (Replaces: 314134)				$ 80.53
5	WP3147265		Switch, Rocker   (Replaces: 3147265)				$ 127.61
6	3147867		Light, Indicator		Appelez-nous	-
	313818		Screw, 8-32 X 3/16 (6)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
