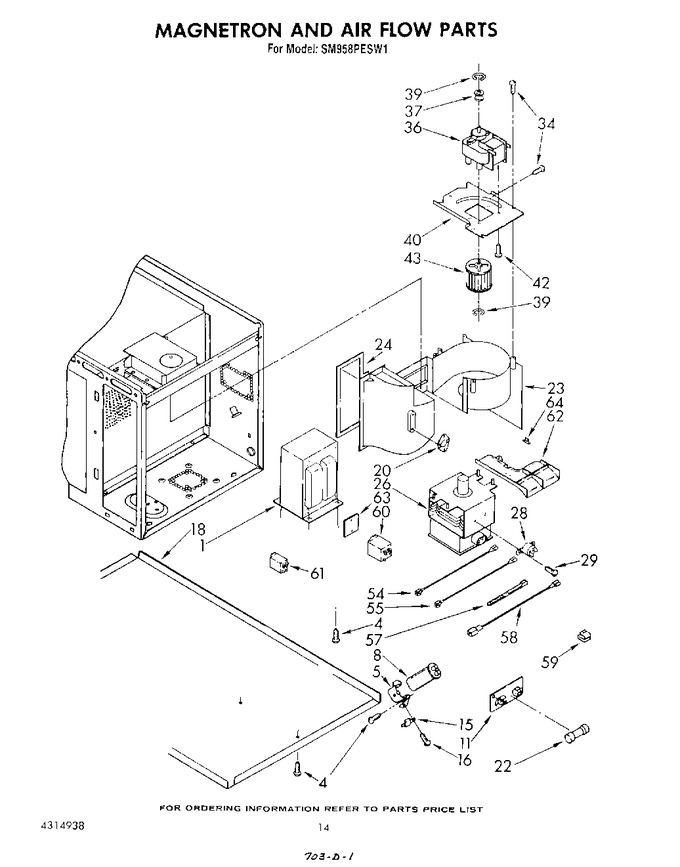

10 - Magnetron And Airflow


11 - Cabinet And Stirrer


12 - Door And Latch


13 - Wiring Harness , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	661173		Transformer		Appelez-nous	-
1	3147273		Transformer (alt.)		Appelez-nous	-
1	3147272		Transformer (alt.)		Appelez-nous	-
4	312185		Screw, 10-32 X 1/2 Hex Washer W/ground Ring (10)		Appelez-nous	-
5	312619		Bracket, Capacitor		Appelez-nous	-
8	312632		Capacitor (alt.)		Appelez-nous	-
8	312631		Capacitor (alt.)		Appelez-nous	-
8	661004		Capacitor		Appelez-nous	-
11	4454949		Block, Fuse   (Replaces: 314121)				$ 81.63
15	313830		Rectifier, High Voltage		Appelez-nous	-
16	312713		Screw, 8-32 X 3/8		Appelez-nous	-
20	3147274		Thermostat		Appelez-nous	-
20	246131		Screw, 6ab X 3/8 (2)		Appelez-nous	-
22	WPW10017410		Fuse (20 Amp)   (Replaces: 309796)			Immediately	$ 19.05
23	313578		Air Duct (horizontal)		Appelez-nous	-
24	313752		Seal, Air Duct		Appelez-nous	-
26	660595		Magnetron		Appelez-nous	-
26	311992		Magnetron (alt.)		Appelez-nous	-
26	311993		Magnetron (alt.)		Appelez-nous	-
26	311994		Magnetron (alt.)		Appelez-nous	-
26	311995		Magnetron (alt.)		Appelez-nous	-
26	313034		Magnetron (alt.)		Appelez-nous	-
28	661165		Thermal Protector		Appelez-nous	-
28	313521		Thermal Protector (alt.)		Appelez-nous	-
28	312800		Thermal Protector (alt.)		Appelez-nous	-
29	312782		Screw, 6a X 3/8 (2)		Appelez-nous	-
34	346893		Screw, 11-16 X 1/2 Double Load Space Thread (5)		Appelez-nous	-
36	313641		Transmotor		Appelez-nous	-
37	311922		Pulley, Motor		Appelez-nous	-
39	311999		``e`` Ring (2)		Appelez-nous	-
40	313601		Bracket, Motor		Appelez-nous	-
42	WP486579		Screw, 6 X 8/32 Round Head Cross Recess (4)   (Replaces: 311865)				$ 6.61
43	3147223		Wheel, Blower		Appelez-nous	-
54	312793		Jumper, High Voltage Black 6-5/16``		Appelez-nous	-
55	313130		Jumper, High Voltage Red (6-5/16``)		Appelez-nous	-
57	WPW10339879		Cable Tie (2)   (Replaces: 309330)				$ 7.11
58	3147863		High Voltage Lead, Gray 6-3/4`` (2)		Appelez-nous	-
59	311311		Clip		Appelez-nous	-
60	3147902		Relay, Vent (24v, Clear)		Appelez-nous	-
61	697811		Relay, Oven (120v, Black)   (Replaces: 3147643)		Appelez-nous	-
62	3147262		Extension, Air Duct		Appelez-nous	-
63	3148083		Insulator, Power Relay		Appelez-nous	-
64	3147834		Thermostat, Fixed		Appelez-nous	-
64	313818		Screw (2)		Appelez-nous	-
