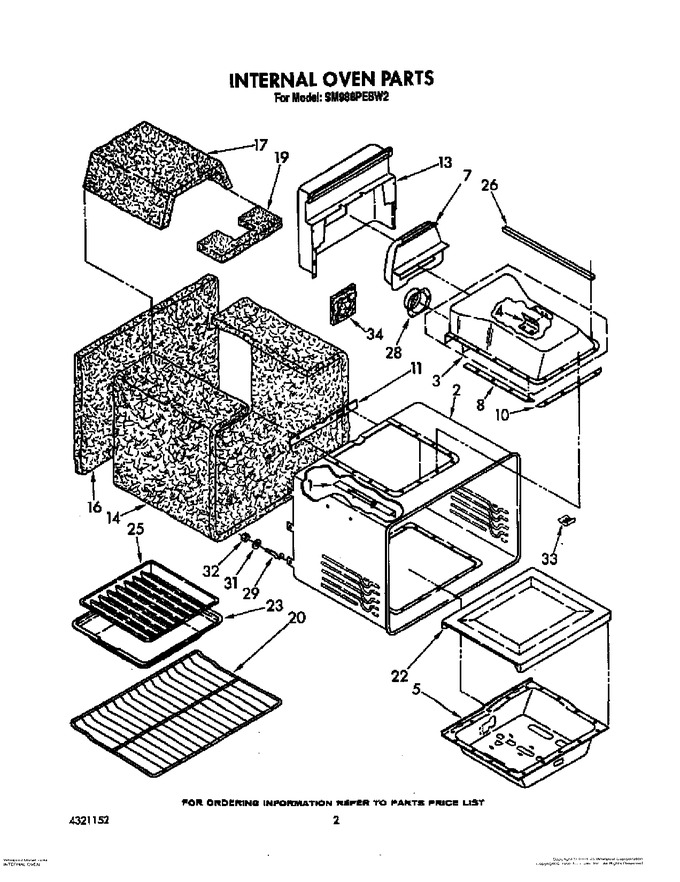

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786349		Sheild, Thermostat Bulb		Appelez-nous	-
2	4315110		Oven 30`` Self-clean		Appelez-nous	-
3	786597		Chamber, Broiler Burner		Appelez-nous	-
4	786543		Bracket, Ignitor		Appelez-nous	-
4	786740		Screw, 10-24 X 7/16 (2)		Appelez-nous	-
5	786336		Burner, Box, Lower		Appelez-nous	-
7	786337		Flue, Inner		Appelez-nous	-
8	786338		Gasket, Side Chamber		Appelez-nous	-
10	786339		Gasket, Front Chamber		Appelez-nous	-
11	786340		Gasket, Oven Back		Appelez-nous	-
13	786341		Flue, Dillution		Appelez-nous	-
14	WPW10208653		Insulation Wrapper   (Replaces: 786674)			Immediately	$ 49.92
16	WPW10208653		Insulation, Oven Back   (Replaces: 786675)			Immediately	$ 49.92
17	WPW10208653		Insulation, Oven Top   (Replaces: 786676)			Immediately	$ 49.92
19	WPW10208653		Insulation, Oven Latch   (Replaces: 786677)			Immediately	$ 49.92
20	786347		Rack, Oven		Appelez-nous	-
22	4315114		Bottom, Oven		Appelez-nous	-
23	4315109		Pan, Broiler		Appelez-nous	-
25	786346		Grid, Broiler		Appelez-nous	-
26	786355		Channel, Broiler Burner		Appelez-nous	-
28	786353		Duct, Cup		Appelez-nous	-
29	786350		Hook Bolt, Oven Shell		Appelez-nous	-
31	786351		Washer		Appelez-nous	-
32	786352		Nut, Hex 10-32		Appelez-nous	-
33	4315098		Cover, Chip		Appelez-nous	-
34	4315034		Insulation, Oven Light		Appelez-nous	-
