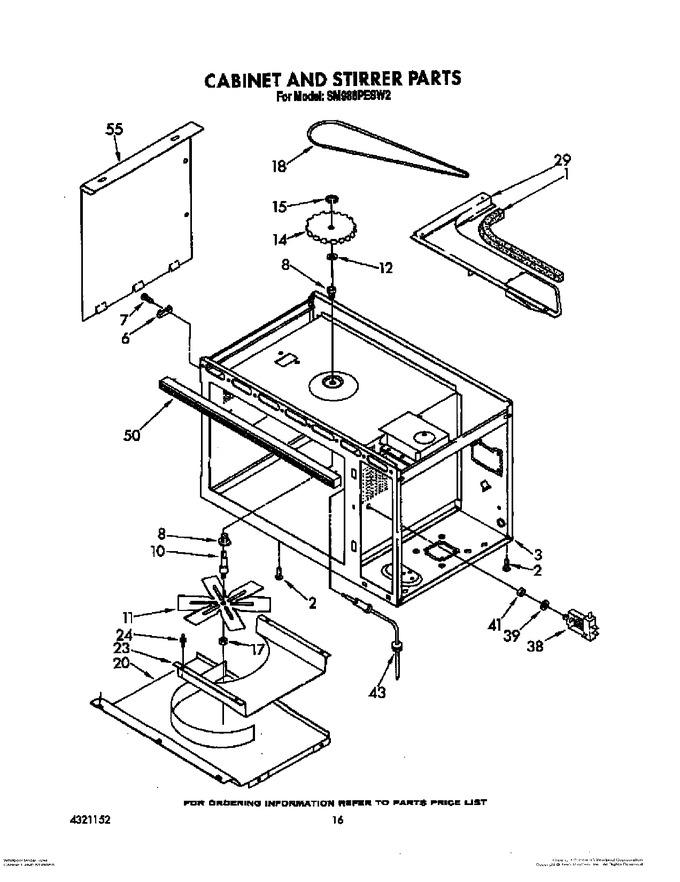

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313753		Seal, Foam		Appelez-nous	-
2	WP308685		Screw, 10a X 1/2 (6)   (Replaces: 253549)			Immediately	$ 7.08
6	313855		Thermal Fuse (includes Illus. 7)		Appelez-nous	-
7	312713		Screw, 8-32 X 3/8 Pan Head Phillips		Appelez-nous	-
8	312023		Bushing, Stirrer		Appelez-nous	-
10	312026		Shaft, Stirrer		Appelez-nous	-
11	313595		Stirrer Blade		Appelez-nous	-
12	312025		Washer, Nylon		Appelez-nous	-
14	311923		Pulley, Stirrer Blade		Appelez-nous	-
15	311999		``e`` Ring		Appelez-nous	-
17	WP487939		Nut, Standard Hex 1/4-20   (Replaces: 311721)				$ 6.95
18	WP313646		Belt, Drive   (Replaces: 313646)				$ 76.05
20	313563		Stirrer Cover		Appelez-nous	-
20	313740		Fastener (2)		Appelez-nous	-
20	313816		Screw, 8-32 X 1/2		Appelez-nous	-
23	313735		Plate, Tuning		Appelez-nous	-
24	313739		Support (4)		Appelez-nous	-
29	3147599		Seal, Foam		Appelez-nous	-
29	3147002		Baffle, Air Exhaust		Appelez-nous	-
38	3147071		Jack, Probe		Appelez-nous	-
39	313105		Washer, Internal Lock		Appelez-nous	-
41	313104		Nut		Appelez-nous	-
43	3148557		Probe, Temperature		Appelez-nous	-
50	3148435		Air Deflector		Appelez-nous	-
55	313816		Screw, 8-32 X 1/2 (4)		Appelez-nous	-
55	3147004		Cover, Side		Appelez-nous	-
