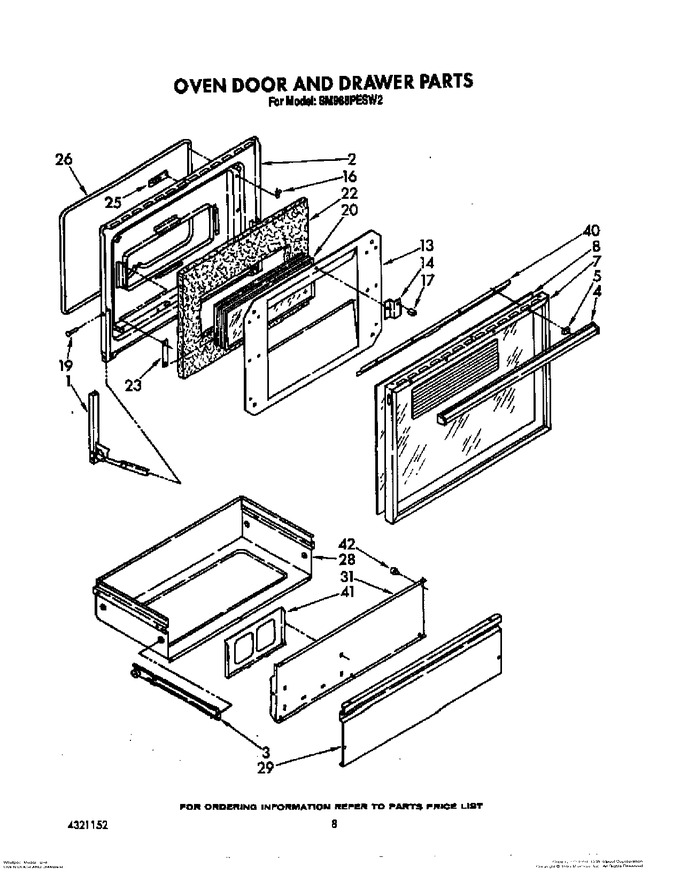

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 786739 | Hinge, Oven Door (left Side) |
|
- | |||||
| 1 | 786374 | Hinge, Oven Door (right Side) |
|
- | |||||
| 2 | WP308685 | Screw (4) (Replaces: 786757) |
|
Immediately | $ 7.08 | ||||
| 2 | WP488130 | Nut (4) (Replaces: 786272) |
|
$ 6.27 | |||||
| 2 | 786755 | Screw, 8-32 X 5/8 (4) |
|
- | |||||
| 2 | WP965173 | Screw, 8 X 3/8 (11) (Replaces: 786745) |
|
Immediately | $ 9.65 | ||||
| 2 | WP965173 | Screw, 8a X 3/8 (6) (Replaces: 786756) |
|
Immediately | $ 9.65 | ||||
| 2 | 4315131 | Liner, Oven Door |
|
- | |||||
| 3 | 786813 | Runner (l.h.) |
|
- | |||||
| 3 | 786814 | Runner (r.h.) |
|
- | |||||
| 4 | 786408 | Handle |
|
- | |||||
| 5 | 786410 | Spacer, Handle (2) |
|
- | |||||
| 7 | 786417 | Frame |
|
- | |||||
| 8 | 786419 | Panel, Black Glass |
|
- | |||||
| 13 | 786424 | Retainer, Insulation |
|
- | |||||
| 14 | 786425 | Bracket, Glass Support (4) |
|
- | |||||
| 16 | 786426 | Clip, Speed (14) |
|
- | |||||
| 17 | 4179237 | Bumper, Window (5) |
|
- | |||||
| 19 | 786428 | Pin, Hinge (2) |
|
- | |||||
| 20 | 786429 | Window Assembly |
|
- | |||||
| 22 | WPW10208653 | Insulation, Door (Replaces: 786806) |
|
Immediately | $ 49.92 | ||||
| 23 | 4179236 | Retainer, Window (4) |
|
- | |||||
| 25 | 786671 | Plate, Latch (2) |
|
- | |||||
| 26 | 786432 | Gasket Assembly |
|
- | |||||
| 28 | 4179232 | Wrapper, Storage Drawer |
|
- | |||||
| 29 | 786666 | Panel, Drawer (platinum) |
|
- | |||||
| 29 | 786522 | Panel, Drawer (white) |
|
- | |||||
| 29 | 786521 | Panel, Drawer (almond) |
|
$ 45.18 | |||||
| 29 | 786667 | Panel, Drawer (toast) |
|
- | |||||
| 31 | 4315117 | Liner, Door Panel |
|
- | |||||
| 40 | 786422 | Baffle, Air |
|
- | |||||
| 41 | 786807 | Rack, Literature |
|
- | |||||
| 42 | 786526 | Bumper |
|
- |
