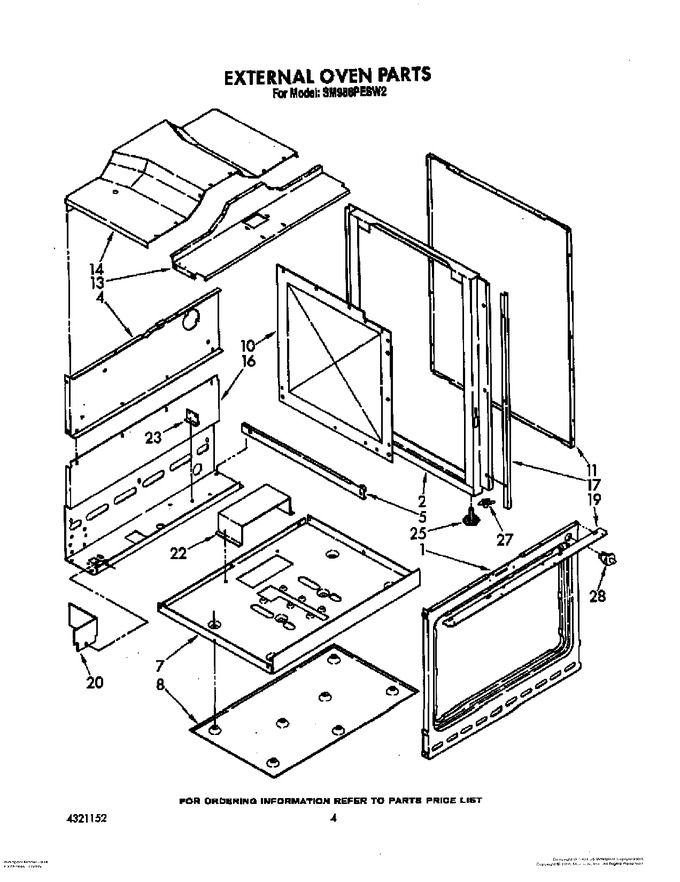

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP965173 | Screw (10) (Replaces: 786223) |
|
Immediately | $ 9.65 | ||||
| 1 | 4315111 | Frame, Front |
|
- | |||||
| 2 | 4315113 | Frame, Side (left Side) |
|
- | |||||
| 2 | 4315112 | Frame, Side (right Side) |
|
- | |||||
| 4 | 4179143 | Rear Panel, Upper |
|
- | |||||
| 5 | 786811 | Track, Storage Draw (right Side) |
|
- | |||||
| 5 | 786812 | Track, Storage Draw (left Side) |
|
- | |||||
| 7 | 786363 | Retainer, Bottom Insulation |
|
- | |||||
| 7 | WP965173 | Screw, 8 X 3/8 (9) (Replaces: 786745) |
|
Immediately | $ 9.65 | ||||
| 8 | 786364 | Heat Shield, Storage Drawer |
|
- | |||||
| 10 | 786365 | Retainer, Insulation (2) |
|
- | |||||
| 11 | 786370 | Panel, End (2) (white) |
|
- | |||||
| 11 | 786600 | Panel, End (2) (platinum) |
|
- | |||||
| 11 | 786601 | Panel, End (2) (toast) |
|
- | |||||
| 11 | 786369 | Panel, End (2) (almond) |
|
- | |||||
| 13 | 786371 | Retainer, Top Front Insulation |
|
- | |||||
| 14 | 786372 | Retainer, Top Back Insulation |
|
- | |||||
| 16 | 786750 | Bushing, Snap |
|
- | |||||
| 16 | WP486754 | Screw, 6-32 X 3/8 (Replaces: 786749) |
|
$ 6.75 | |||||
| 16 | 786748 | Nut, 6-32 |
|
- | |||||
| 16 | WP965173 | Screw, 8 X 3/8 (2) (Replaces: 786745) |
|
Immediately | $ 9.65 | ||||
| 16 | WP488130 | Nut (2) (Replaces: 786272) |
|
$ 6.27 | |||||
| 16 | 4179142 | Rear Panel, Lower |
|
- | |||||
| 17 | 786382 | Trim, Side Panel (2) |
|
- | |||||
| 19 | 4315118 | Filler, Front Frame |
|
- | |||||
| 20 | 786385 | Plate, Cover |
|
- | |||||
| 22 | 786388 | Cover, Burner |
|
- | |||||
| 23 | 786389 | Bracket, Gas Valve (2) |
|
- | |||||
| 25 | 786602 | Leg, Leveling (4) |
|
- | |||||
| 27 | 4157527 | Nut (4) |
|
- | |||||
| 28 | 4179328 | Switch, Oven Light |
|
- |
