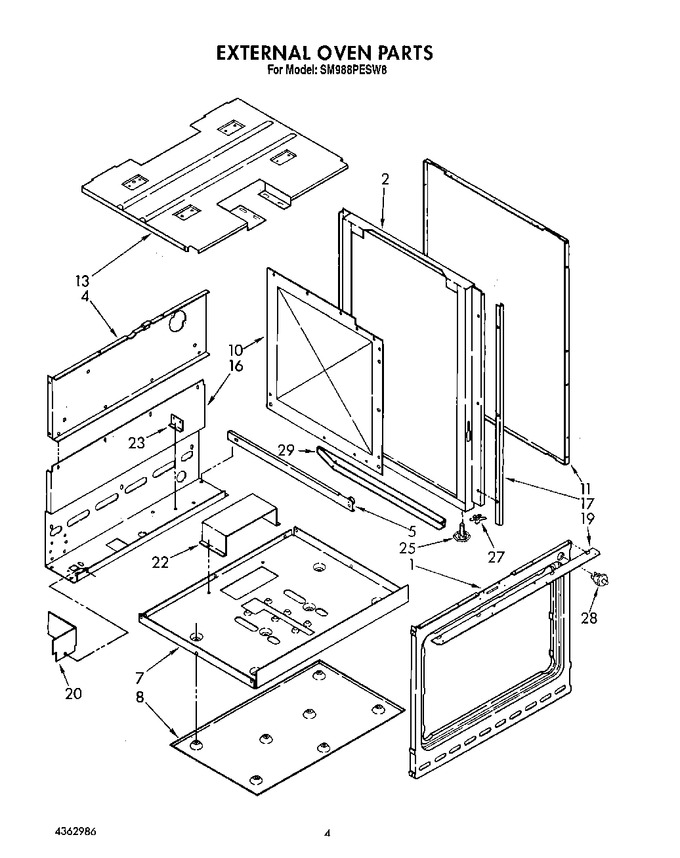

03 - External Oven


04 - Manifold, Wiring Harness


05 - Oven Electrical


06 - Oven Door And Drawer


07 - Control Compartment


08 - Upper Oven, Optional


09 - Magnetron And Air Flow


10 - Cabinet And Stirrer


11 - Door And Latch


12 - Cabinet And Hinge


13 - Cooktop


14 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP965173		Screw (10)   (Replaces: 786223)			Immediately	$ 9.65
1	4320374		Frame, Front		Appelez-nous	-
2	4362921		Frame, Side (black)		Appelez-nous	-
2	4362888		Frame, Side (white)		Appelez-nous	-
4	4179143		Rear Panel, Upper		Appelez-nous	-
5	786812		Track, Storage Draw (left Side)		Appelez-nous	-
5	786811		Track, Storage Draw (right Side)		Appelez-nous	-
7	4315770		Retainer, Bottom Insulation		Appelez-nous	-
7	WP965173		Screw, 8 X 3/8 (9)   (Replaces: 786745)			Immediately	$ 9.65
8	786364		Heat Shield, Storage Drawer		Appelez-nous	-
10	4362922		Retainer, Insulation (2)		Appelez-nous	-
11	4362897		Panel, End (2) (almond)		Appelez-nous	-
11	4362888		Panel, End (2) (white)		Appelez-nous	-
13	4362931		Retainer, Top Insulation		Appelez-nous	-
16	WP488130		Nut (2)   (Replaces: 786272)				$ 6.27
16	WP486754		Screw, 6-32 X 3/8   (Replaces: 786749)				$ 6.75
16	4362820		Bushing, Snap		Appelez-nous	-
16	4179142		Rear Panel, Lower		Appelez-nous	-
16	WP965173		Screw, 8 X 3/8 (2)   (Replaces: 786745)			Immediately	$ 9.65
16	786748		Nut, 6-32		Appelez-nous	-
17	4320862		Trim, Side Panel (2)		Appelez-nous	-
19	4315118		Filler, Front Frame		Appelez-nous	-
20	786385		Plate, Cover		Appelez-nous	-
22	786388		Cover, Burner		Appelez-nous	-
23	4315678		Bracket, Gas Valve (2)		Appelez-nous	-
25	786602		Leg, Leveling (4)		Appelez-nous	-
27	4157527		Nut (4)		Appelez-nous	-
28	4179328		Switch, Oven Light		Appelez-nous	-
29	4362923		Bracket, Panel (right Hand)		Appelez-nous	-
29	4362935		Bracket, Panel (left Hand)		Appelez-nous	-
