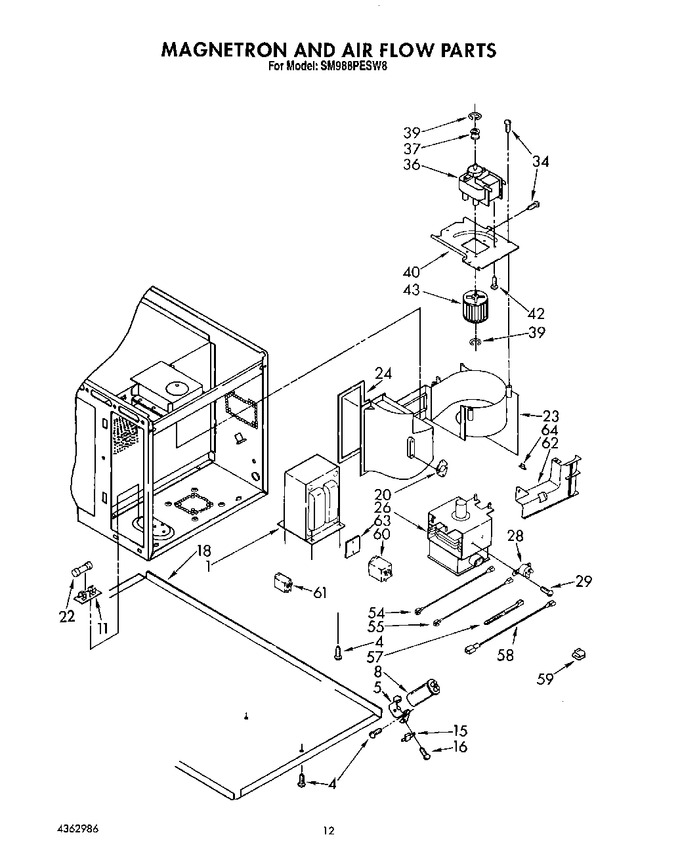

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 661173 | Transformer |
|
- | |||||
| 4 | 312185 | Screw, 10-32 X 1/2 Hex Washer W/ground Ring (10) |
|
- | |||||
| 5 | 312619 | Bracket, Capacitor |
|
- | |||||
| 8 | 661004 | Capacitor |
|
- | |||||
| 11 | 4454949 | Block, Fuse (Replaces: 314121) |
|
$ 81.63 | |||||
| 15 | 313830 | Rectifier, High Voltage |
|
- | |||||
| 16 | 312713 | Screw, 8-32 X 3/8 |
|
- | |||||
| 20 | 246131 | Screw, 6ab X 3/8 (2) |
|
- | |||||
| 20 | 3147274 | Thermostat |
|
- | |||||
| 22 | WPW10017410 | Fuse (20 Amp) (Replaces: 309796) |
|
Immediately | $ 19.05 | ||||
| 23 | 313578 | Air Duct (horizontal) |
|
- | |||||
| 24 | 313752 | Seal, Air Duct |
|
- | |||||
| 26 | 660595 | Magnetron |
|
- | |||||
| 28 | 661165 | Thermal Protector |
|
- | |||||
| 29 | 312782 | Screw, 6a X 3/8 (2) |
|
- | |||||
| 34 | 346893 | Screw, 11-16 X 1/2 Double Load Space Thread (5) |
|
- | |||||
| 36 | 313641 | Transmotor |
|
- | |||||
| 37 | 311922 | Pulley, Motor |
|
- | |||||
| 39 | 311999 | ``e`` Ring (2) |
|
- | |||||
| 40 | 313601 | Bracket, Motor |
|
- | |||||
| 42 | WP486579 | Screw, 6 X 8/32 Round Head Cross Recess (4) (Replaces: 311865) |
|
$ 6.61 | |||||
| 43 | 3147223 | Wheel, Blower |
|
- | |||||
| 54 | 312793 | Jumper, High Voltage Black 6-5/16`` |
|
- | |||||
| 55 | 313130 | Jumper, High Voltage Red (6-5/16``) |
|
- | |||||
| 57 | WPW10339879 | Cable Tie (2) (Replaces: 309330) |
|
$ 7.11 | |||||
| 58 | 3147863 | High Voltage Lead, Gray 6-3/4`` (2) |
|
- | |||||
| 59 | 311311 | Clip |
|
- | |||||
| 60 | 3147902 | Relay, Vent (24v, Clear) |
|
- | |||||
| 61 | 697811 | Relay, Oven (120v, Black) (Replaces: 3147643) |
|
- | |||||
| 62 | 3147262 | Extension, Air Duct |
|
- | |||||
| 63 | 3148083 | Insulator, Power Relay |
|
- | |||||
| 64 | 313818 | Screw (2) |
|
- | |||||
| 64 | 3147834 | Thermostat, Fixed |
|
- |
