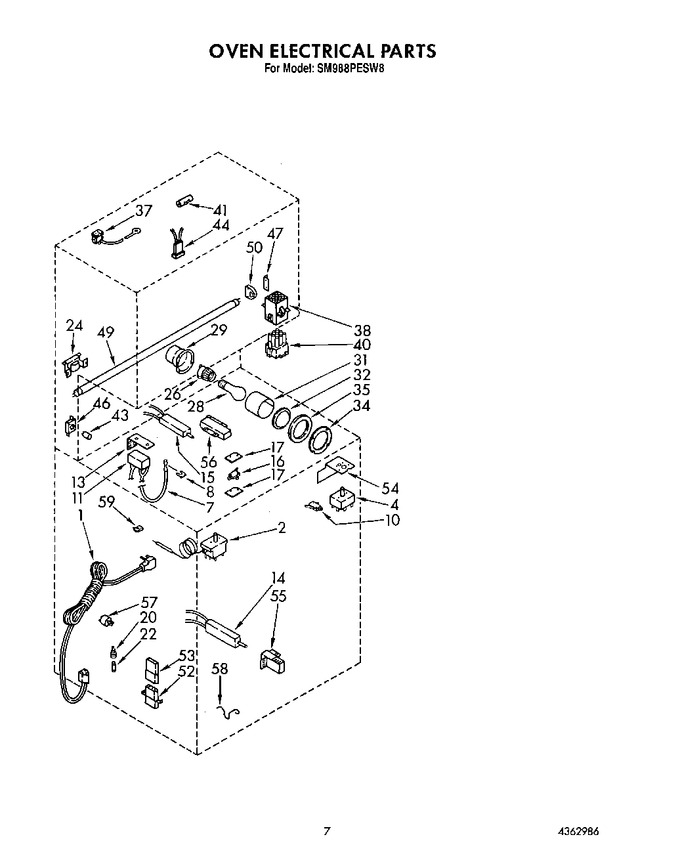

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4362961		Cord, Power		Appelez-nous	-
2	4321095		Thermostat, Oven		Appelez-nous	-
4	4179076		Switch, Selector		Appelez-nous	-
7	786320		Ignitor, Top (r.h.)		Appelez-nous	-
7	786321		Ignitor, Top (l.h.)		Appelez-nous	-
8	WPY0070927		Mounting Clip, Electrode   (Replaces: 786580)				$ 6.85
10	4320326		Switch, Top Burner Actuator		Appelez-nous	-
11	786323		Module, Spark		Appelez-nous	-
13	786581		Bracket, Spark Module		Appelez-nous	-
14	786324		Ignitor, Bake   (Replaces: 786659)			Immediately	$ 60.68
15	786324		Ignitor, Broil   (Replaces: 786660)			Immediately	$ 60.68
16	4362916		Switch, Oven Door Latch		Appelez-nous	-
17	786380		Insulator, Switch		Appelez-nous	-
20	786584		Holder, Fuse		Appelez-nous	-
22	786585		Fuse		Appelez-nous	-
24	786540		Ballast		Appelez-nous	-
26	786653		Socket, Oven Lamp		Appelez-nous	-
28	8009		Lamp, Oven   (Replaces: 786742)			Immediately	$ 16.80
29	WP74011278		Housing, Oven Light   (Replaces: 4320323)				$ 101.56
31	786573		Retainer, Insulation		Appelez-nous	-
32	786574		Lens, Oven Light		Appelez-nous	-
34	786575		Retainer, Oven Light Lens		Appelez-nous	-
35	786576		Gasket, Oven Light		Appelez-nous	-
37	786651		Outlet, Fan Motor		Appelez-nous	-
38	786652		Cap, 9 Pin Connector		Appelez-nous	-
40	786593		Plug, 9 Pin Connector		Appelez-nous	-
41	786654		Receptacle, 1 Circuit		Appelez-nous	-
43	786541		Starter, Fluorescent		Appelez-nous	-
44	786655		Plug, 2 Circuit		Appelez-nous	-
46	786542		Socket, Starter		Appelez-nous	-
47	786592		Support Bracket, Socket		Appelez-nous	-
49	WP95292		Lamp, Fluorescent   (Replaces: 786594)			Immediately	$ 121.45
50	786536		Lampholder Fluorescent		Appelez-nous	-
52	786661		Receptacle, 3 Pin		Appelez-nous	-
53	786662		Plug, 3-pin		Appelez-nous	-
54	786689		Insulator, Control (2)		Appelez-nous	-
55	786801		Bracket, Bake Ignitor		Appelez-nous	-
56	786802		Bracket, Broiler Ignitor		Appelez-nous	-
57	786570		Plug, Male		Appelez-nous	-
58	4179338		Clip, Wire		Appelez-nous	-
59	4157515		Speed Clip		Appelez-nous	-
