Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4362988 Support, Upper Oven (r.h.) Appelez-nous -
1 4362987 Support, Upper Oven (l.h.) Appelez-nous -
2 4362977 Shield, Heat Appelez-nous -
3 4179231 Trim, Lower Appelez-nous -
4 4179238 Glass, Splashplate Appelez-nous -
5 786489 Trim, Glass Appelez-nous -
6 4179243 Trim, Rear Appelez-nous -
7 4362990 Panel, Surface Light Appelez-nous -
8 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

8 3147593 Seal, Foam Appelez-nous -
8 312783 Bumper (4) Appelez-nous -
8 4179239 Panel, Bottom Appelez-nous -
9 3147649 Support, Side (l.h.) (white) Appelez-nous -
9 3147650 Support, Side (l.h.) (almond) Appelez-nous -
9 3147654 Support, Side (l.h.) (white) Appelez-nous -
9 3147655 Support, Side (l.h.) (almond) Appelez-nous -
10 4179242 Spacer, Wall Appelez-nous -
11 4362962 Panel, Cover Appelez-nous -
12 3147525 Clip (4) Appelez-nous -
13 3147606 Filter, Mesh (2) Appelez-nous -
14 3170224 Support, Frame Appelez-nous -
15 WP488729 Screw, 8-18 X 1/2 (6)   (Replaces: 313638) In-Stock Immediately $ 7.01

15 3170472 Top Panel Appelez-nous -
16 3147607 Filter, Mesh Appelez-nous -
17 3147378 Nut (3) Appelez-nous -
18 3147817 Motor, Fan Appelez-nous -
19 WP488729 Screw, 8-18 X 1/2 (4)   (Replaces: 313638) In-Stock Immediately $ 7.01

19 3147798 Cover, Access Appelez-nous -
20 3170131 Frame Appelez-nous -
20 311945 Screw, 8-32 X 1/2 (4) Appelez-nous -
21 3147596 Seal, Foam Appelez-nous -
21 3147751 Seal, Foam (4) Appelez-nous -
21 3147764 Spring, Vent Door (2) Appelez-nous -
21 3147858 Rivet (2) Appelez-nous -
21 3148294 Rivet, Plastic (2) Appelez-nous -
21 3147712 Panel, Vent Door Appelez-nous -
21 3147595 Seal, Foam (2) Appelez-nous -
21 3147724 Screw, Shoulder (2) Appelez-nous -
22 3147710 Handle, Vent Door Appelez-nous -
22 WP313808 Screw, 6-32 X 9/32 (3)   (Replaces: 313808) Special Order $ 6.84

23 3170269 Door, Vent Appelez-nous -
24 3147726 Cover, Exhaust Appelez-nous -
25 3147843 Damper Appelez-nous -
26 WP488729 Screw, 8-18 X 1/2 (3)   (Replaces: 313638) In-Stock Immediately $ 7.01

26 3148009 Flue, Air Appelez-nous -
27 307602 Nut, Hex 6-32 (2) Appelez-nous -
27 312389 Motor, Fan Appelez-nous -
28 WP488729 Screw, 8-18 X 1/2 (3)   (Replaces: 313638) In-Stock Immediately $ 7.01

28 310420 Mount, Fan Motor Appelez-nous -
29 307535 Blade, Fan Appelez-nous -
30 3148007 Separator, Air Appelez-nous -
30 3147590 Seal, Foam Appelez-nous -
31 3148008 Bushing, Snap Appelez-nous -
32 WPW10339879 Cable, Tie   (Replaces: 309330) Special Order $ 7.11

33 WP681414 Side Panel, L.h. (screw, 10-16 X 1/2 (6))   (Replaces: 343641) In-Stock Immediately $ 7.07

33 3147592 Side Panel, L.h. (seal, Foam (2) Side Panel, R.h.) Appelez-nous -
33 3171912 Side Panel, L.h. (almond) Appelez-nous -
33 WP488627 Side Panel, L.h. (screw, 8a X 1/2 (2))   (Replaces: 338156) Special Order $ 6.81

33 3171913 Side Panel, L.h. (almond) Appelez-nous -
33 3171911 Side Panel, L.h. (white) Appelez-nous -
33 3147591 Side Pane, L.h. (seal, Foam (2)) Appelez-nous -
33 3171910 Side Panel, L.h. (white) Appelez-nous -
34 4315018 Gusset, Side Frame (2) Appelez-nous -
35 242832 Wire, Yellow 14 Ga. 200~c Appelez-nous -
35 242828 Wire (12 Ga. 150 C Black) Appelez-nous -
35 242821 Wire (14 Ga. 150 C Blue) Appelez-nous -
35 242822 Wire (14 Ga. 150 C Brown) Appelez-nous -
35 242830 Wire (14 Ga. 200 C Brown) Appelez-nous -
35 242823 Wire (14 Ga. 150 C Green) Appelez-nous -
35 242824 Wire (14 Ga. 150 C Orange) Appelez-nous -
35 242829 Wire, Red 12 Ga. 150~c Appelez-nous -
35 242825 Wire (14 Ga. 150 C Red) Appelez-nous -
35 242831 Wire (14 Ga. 200 C Red) Special Order $ 342.23

35 242826 Wire, White 14 Ga. 150~c Appelez-nous -
35 242827 Wire (14 Ga. 150 C Yellow) Appelez-nous -
35 242820 Wire (14 Ga. 150 C Black) Appelez-nous -
35 4315104 Spacer, Wall (horizontal) Appelez-nous -
35 261900 Citrine White (6 Oz.) Special Order $ 51.34

35 591014 Adhesive Loctite (1/3 Oz.) Appelez-nous -
35 WP482338 Sealer, Silastic (3 Oz.)   (Replaces: 482338) In-Stock Immediately $ 57.16

35 814023 Recirculating Kit Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

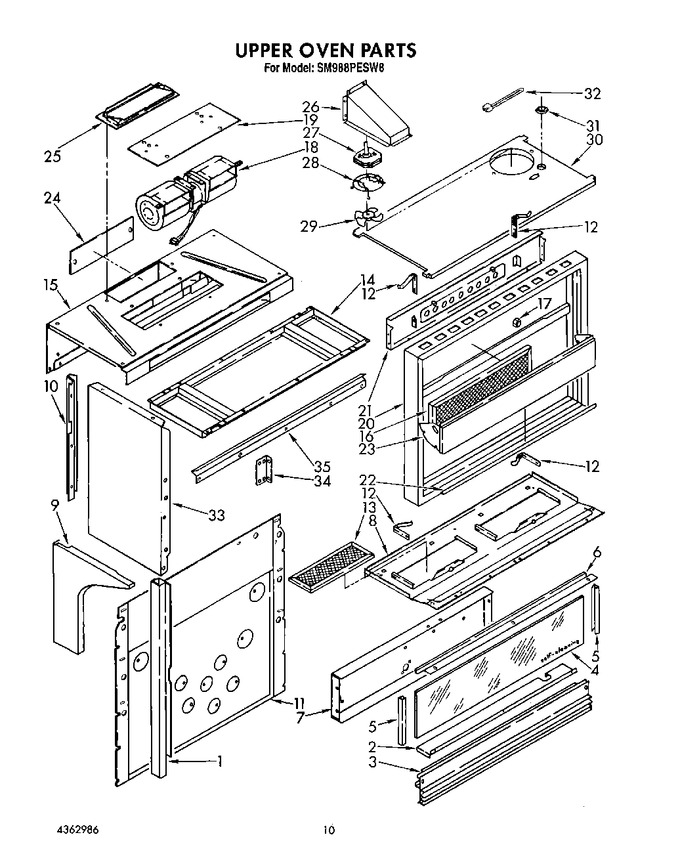

Diagram for SM988PESW8
